Automatic Cutting Machine

Automatic Die Cutting Machine

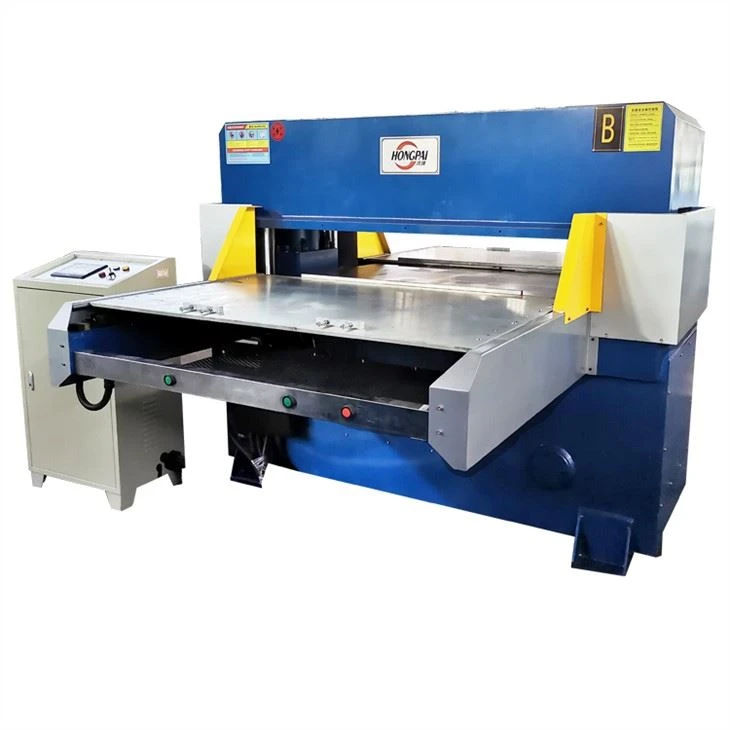

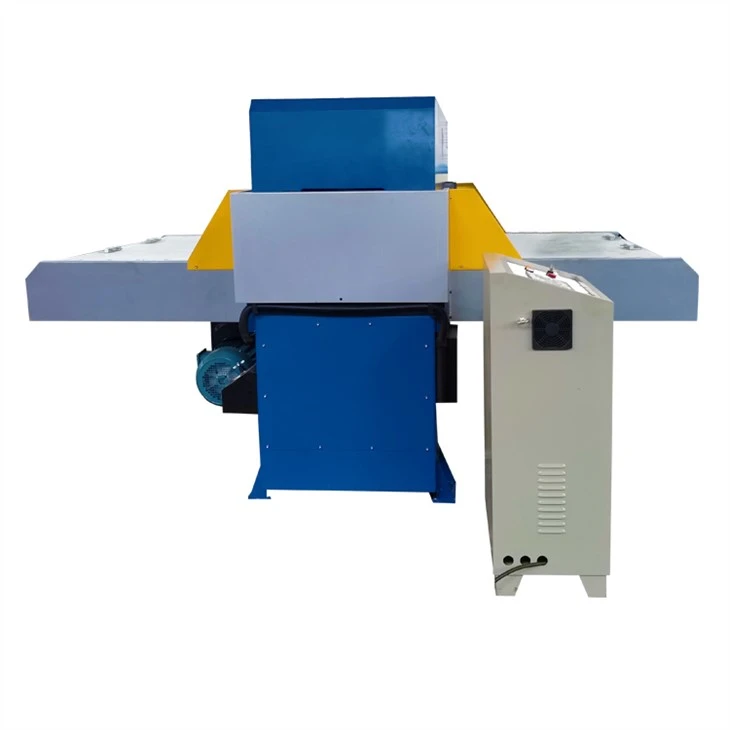

Automatic Die Cutting Machine

Automatic die cutting machine is used for die cutting disposable plastic blister or foam packaging,EPE foam packaging.automotive /plane interiors etc.
Send InquiryChat Now

Automatic die cutting machine is used for die cutting disposable plastic blister or foam packaging,EPE foam packaging.automotive /plane interiors etc.The machine is controlled by Programmable logic controller,with touching screen,to set and micro-adjust working pressure,Cutting depth,feeding speed easier,faster and more precise.


1. Parameter:

Model.No~

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-B60T

60 Tons

3000×2300×1570mm

810×1400mm

5.5kw

50-230mm

4500kg

HG-B80T

80 Tons

3000×2300×1570mm

810×1400mm

7.5kw

50-230mm

5000kg

HG-B100T

100 Tons

3000×2300×1570mm

810×1400mm

7.5kw

50-230mm

5500kg

HG-B120T

120 Tons

3000×2300×1570mm

810×1400mm

11kw

50-230mm

6300kg

HG-B150T

150 Tons

3000×2300×1570mm

810×1400mm

11kw

50-230mm

7000KG

2. Application:

1.The working principle of the automatic die cutting machine is down press to the mould, and it to cut material by dies / moulds.
2.Used for die cutting disposable plastic blister or foam packaging,EPE foam packaging.automotive / plane interiors etc.
3.Applicable to all non-metallic materials, irregular shape of the cutting.

3. Feature:

1. Four-column double cylinder mechanism design, good rigidity, can effectively ensure the plane precision of the machine, and maintain a stable cutting force output at any position of the cutting section.

2. Intermittent single-stroke operation, two-hand button actuation, emergency stop device to ensure safe operation.

3. The die setting is simple and accurate, and the cutting force is high speed and easy.

4. Automatic lubrication system to ensure machine precision and improve machine durability.

5. The conveying part is controlled by PLC. The servo motor drives the material to be input from one side of the machine. After die cutting, it is output from the other side to ensure accurate feeding and stable operation. And the feeding length can be easily adjusted through the touch screen.

6. The main machine adopts four-column guide, double crank balance, four-column block fine-tuning mechanism, hydraulic system control, which ensures the die-cutting speed and precision of the machine. All sliding joints adopt intermediate oil supply automatic lubrication device to reduce wear.

4. Picture:



5. Picture:
