Automatic Cutting Machine

Hydraulic Die Cutting Machine

Hydraulic Die Cutting Machine

Application: This model can be die-cut and fully-cut, semi-cut products, suitable for die-cutting of sponge, light glue, PET, PP, PVC, EVA, viscose, insulation, packaging materials. Feature: This machine features automatic feeding, automatic clamping and automatic cutting. It has an automatic...
Send InquiryChat Now

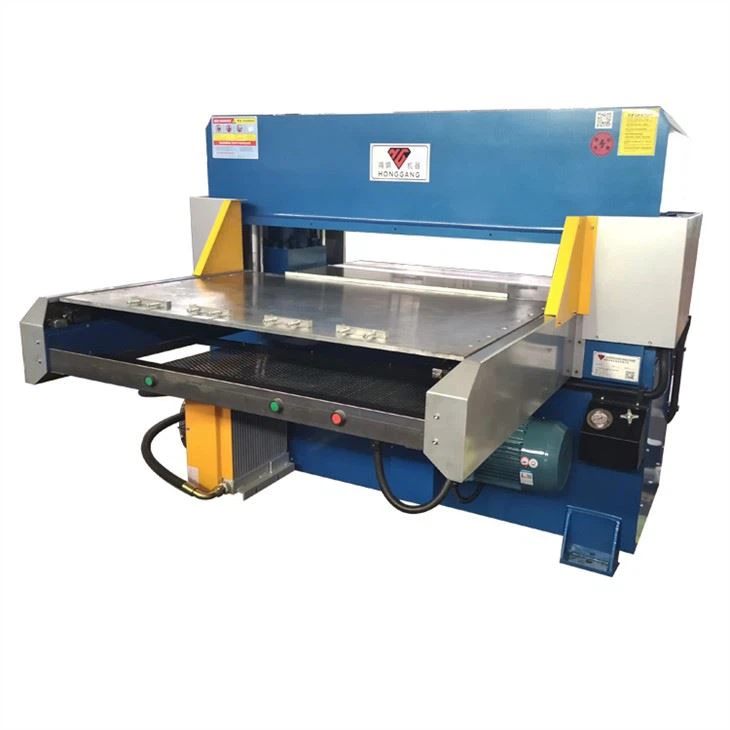

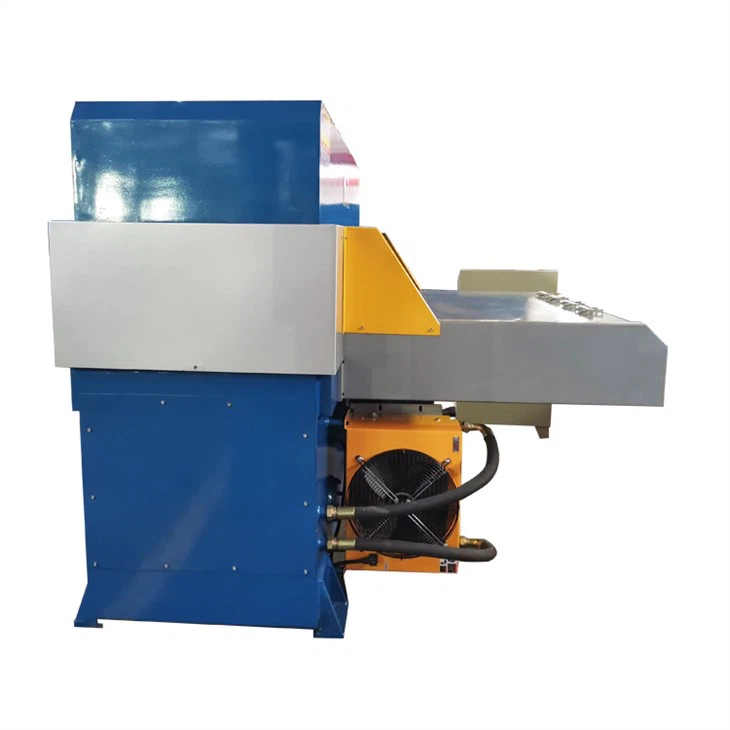

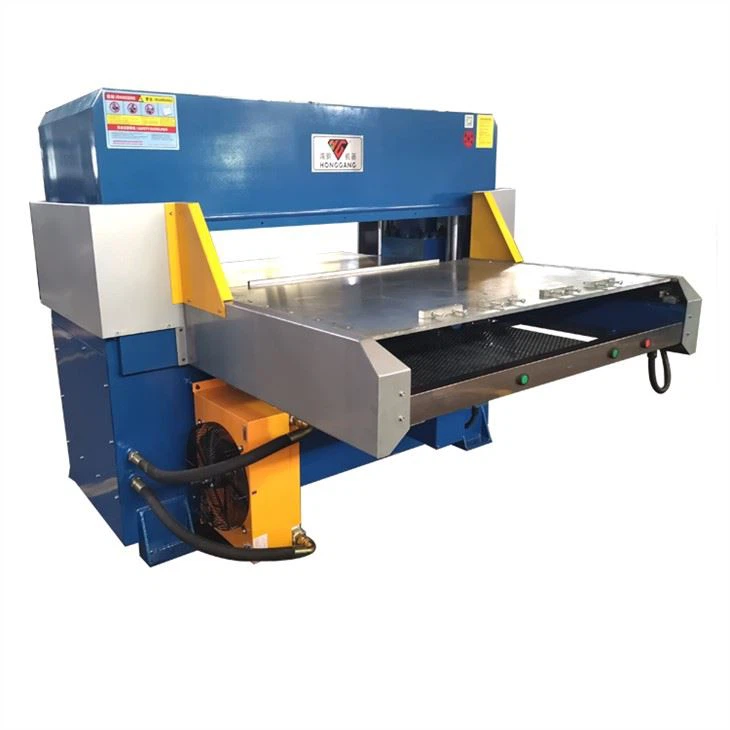

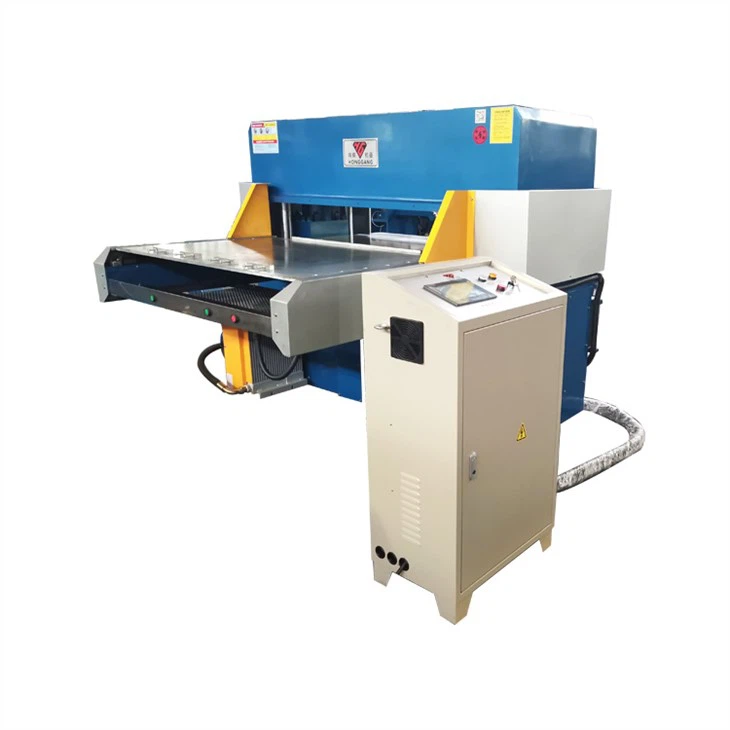

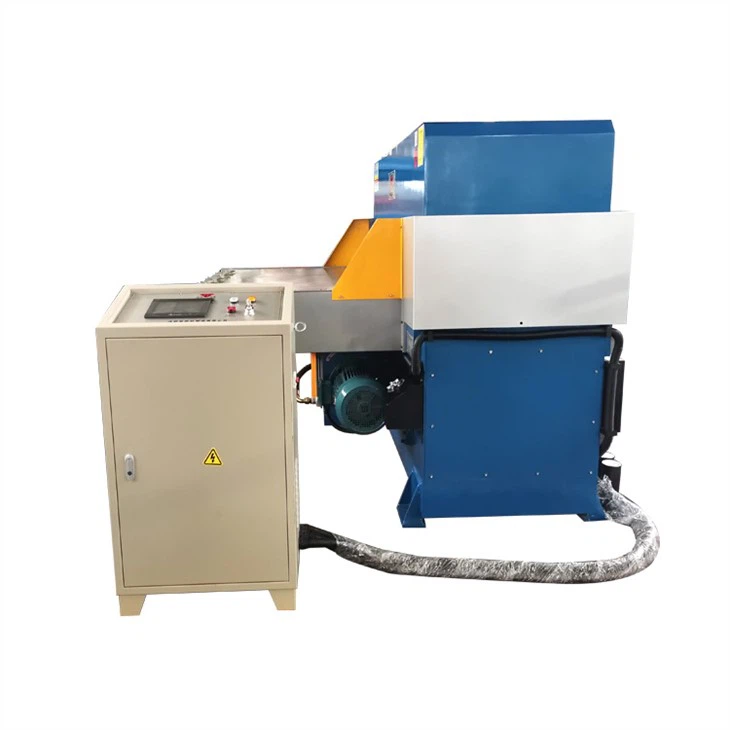

Hydraulic die cutting machine features automatic feeding, automatic clamping and automatic cutting. It has an automatic lubrication cooling function, and its hydraulic system uses a water-cooling device to solve the high temperature effects caused by long hours of work. At the same time, it also has automatic detection system alarm information and automatic control circuit functions to help handle faults and make production safe and reliable. The maximum feed length for hydraulic feeding is up to 0.7 m and can be customized for extended versions if required. Compared with the traditional panel, this machine eliminates the traditional panel button operation, adopts touch screen control, liquid crystal display (LCD), and is very convenient to operate.

Parameter:

Model.No~

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-B60T

60 Tons

3000×2300×1570mm

810×1400mm

5.5kw

50-230mm

4500kg

HG-B80T

80 Tons

3000×2300×1570mm

810×1400mm

7.5kw

50-230mm

5000kg

HG-B100T

100 Tons

3000×2300×1570mm

810×1400mm

7.5kw

50-230mm

5500kg

HG-B120T

120 Tons

3000×2300×1570mm

810×1400mm

11kw

50-230mm

6300kg

HG-B150T

150 Tons

3000×2300×1570mm

810×1400mm

11kw

50-230mm

7000KG


Hydraulic Die Cutting Machine.jpg

Application:

This model can be die-cut and fully-cut, semi-cut products, suitable for die-cutting of sponge, light glue, PET, PP, PVC, EVA, viscose, insulation, packaging materials.
