Packaging Cutting Machine

The packaging cutting machine working is auto continuously, it special for blister packaging products, such as disposable food container, cup cover, fresh/sea food tray, fruit box, etc....

Auto Continuously Feeding Packaging Cutting Machine with Mechanical Arm


1.Application:

The packaging cutting machine is also called four column hydraulic cutting machine, working is auto continuously, It is equipped with a set of mechanical arm, it replaces manual collection of materials, which greatly increases productivity and reduces labor costs.

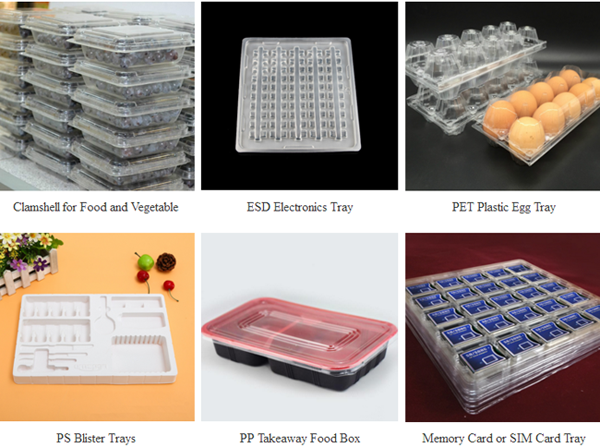

It special for blister packaging products, such as disposable food container, cup cover, fresh/sea food tray, fruit box, etc.

packaging cutting machine

2.  Feature:
1. Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.
2. Stroke adjustment device, makes stroke simple and correct to adjust with packaging cutting machine die, cutting board and materials.
3. Suitable for single-layer or multi-layer sheet or roll materials.
4. Auto section cutting,with mechanical arm picking faster 3 times than hands.


3. Parameter:

Model.No~

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-B30T

30 Tons

3000×3000×2500mm

1220×610mm

2.2kw

50-240mm

2400kg

HG-B40T

40 Tons

3000×3000×2500mm

1220×610mm

4kw

50-240mm

3000kg

HG-B50T

50 Tons

3000×3000×2500mm

1220×610mm

4kw

50-240mm

3400kg


4. Picture:


If you have any question for this packaging cutting machine, please contact us, we would very happy to reply you.
