Receding head cutting machine

Receding Head Cutting Machine

Receding Head Cutting Machine

This Receding Head Cutting Machine is uesd for die cutting shoes, leather, bags, automotive interiors and toy etc. The biggest advantage of the machine is that the material is fixed during the cutting process
Send InquiryChat Now

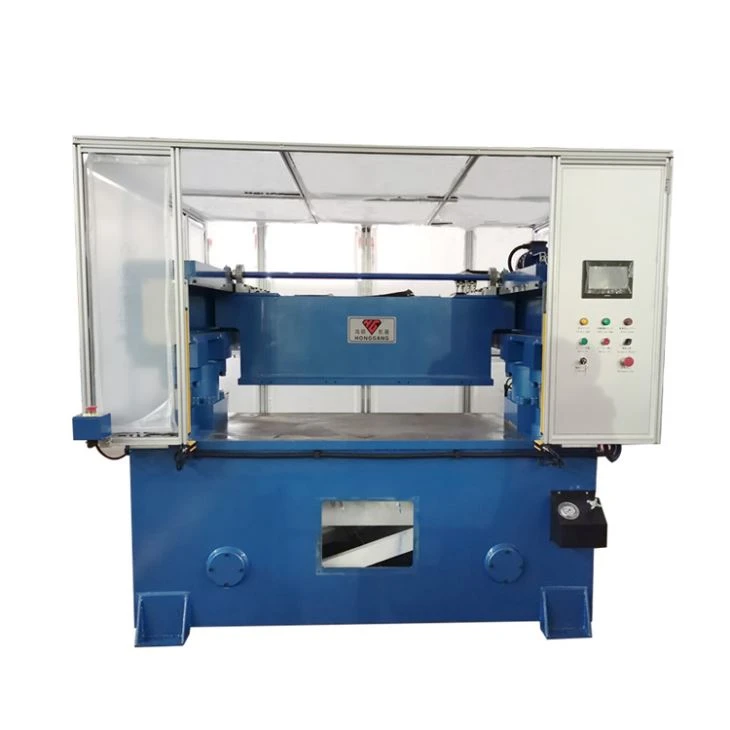

Precision hydraulic Receding Head Cutting Machine


1. Application:

This Receding Head Cutting Machine is uesd for die cutting shoes, leather, bags, automotive interiors and toy etc. The biggest advantage of the machine is that the material is fixed during the cutting process, which can effectively avoid the problems caused by the material moving during the cutting process, and obtain the best cutting quality, whether it is a roll or sheet material.


2. Feature:

1. Special receding head cutting structure, allows no need for moving material and feeding table after every stroke to save time and confirm the cutting precision.

2. Motor drive controlled moving head runs faster, more precise, saving labor.

3. Easy to put on cutting die in large space after head receding.

4. Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area.

5.The electronic sensor ruler height setting mechanism can accurately set the knife height to ensure the cutting quality.

6. Suitable for rolls or sheets materials.


3. Parameter:

Model.No~

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-P40T

40 Tons

2260×1550×1650mm

610×1600mm

5kw

50-200mm

3000kg

HG-P50T

50 Tons

2500×2000×1300mm

610×1600mm

6.5kw

50-200mm

3500kg

HG-P60T

60 Tons

2600×2400×1300mm

650×1500mm

7.5kw

50-200mm

4000kg

HG-P100T

100 Tons

2600×2400×1300mm

800×1400mm

7.5KW

50-200mm

6000kg

Factory direct sale; Guarantee Period one year
Note: we can produce different types, tons and cutting area of machine according to your demand.


4. Price:
(1)wholesale price
(2)good quality with best price
(3)terms of payment: T/T

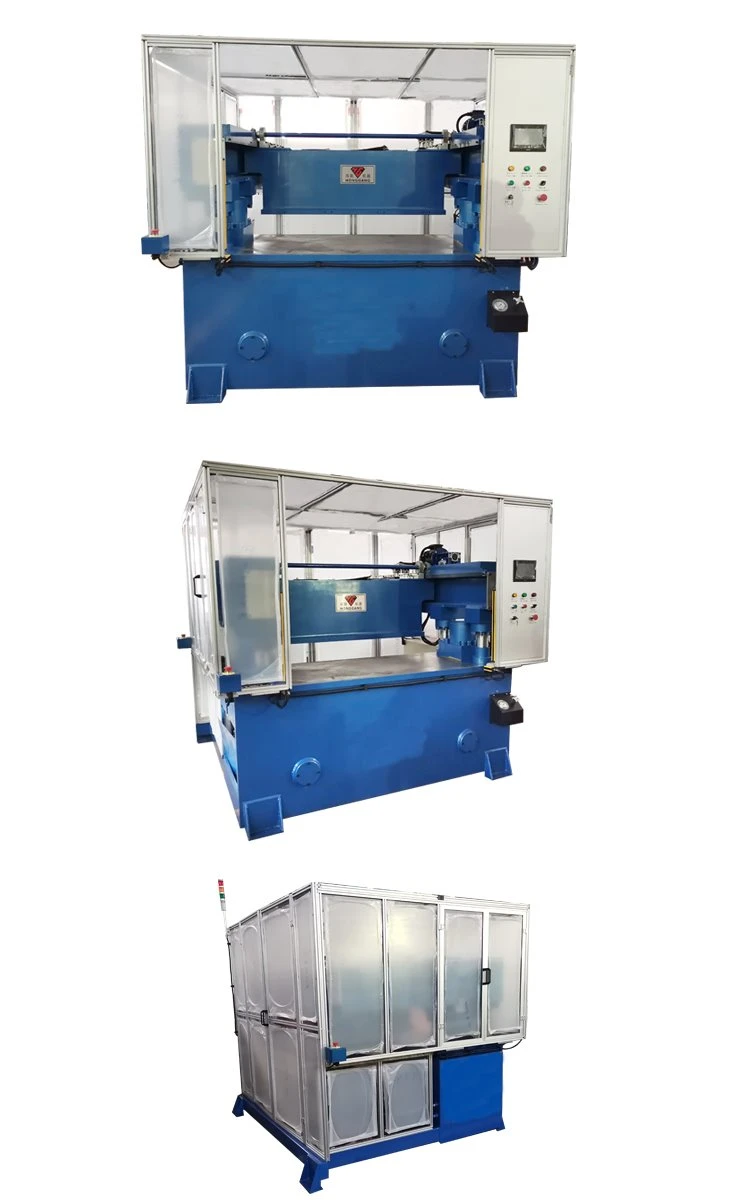

5. Picture:
