Manual die cutting machine

Hydraulic Guillotine Paper Cutter Machine

Hydraulic Guillotine Paper Cutter Machine

This Hydraulic Guillotine Paper Cutter Machine is also called a four-column hydraulic cutting machine, a hydraulic cutting machine, and the internal structure is equipped with hydraulic oil, and the hydraulic oil is operated to control the cutting operation.
Send InquiryChat Now

Basic Description:

This Hydraulic Guillotine Paper Cutter Machine is also called a four-column hydraulic cutting machine, a hydraulic cutting machine, and the internal structure is equipped with hydraulic oil, and the hydraulic oil is operated to control the cutting operation. Hydraulic cutting can cut rice paper, leather, paper and other materials in the text, and the processing speed is faster. Therefore, it is widely used in the printing and publishing of cardboard toys and libraries.

Technical Parameters

Model.No~

Cutting Force

Dimension

(L*W*H)

Area of Work Table

Main Motor Power

Stroke Control Range

Net Weight

HG-a30T/63"

30 Tons

2330*1320*1260mm

610*1600mm

2.2kw

50-160mm

1900kg

HG-B30T/63"

30 Tons

2330*1320*1260mm

610*1600mm

2.2kw

50-240mm

2000kg

HG-B30T/48"

30 Tons

1950*1320*1260mm

610*1220mm

2.2kw

50-240mm

1900kg

HG-a40T/63"

40 Tons

2330*1320*1260mm

610*1600mm

4kw

50-160mm

2500kg

HG-B40T/48"

40 Tons

1950*1320*1260mm

610*1220mm

4kw

50-240mm

2400kg

HG-a50T/63"

50 Tons

2330*1320*1260mm

610*1600mm

4kw

50-160mm

2900kg

HG-B50T/48"

50 Tons

1950*1320*1260mm

610*1220mm

4kw

50-240mm

2800kg


Feature:

This Hydraulic Guillotine Paper Cutter Machine works at a speed equal to imported machines, more than 2 times faster than home machines. Its advanced design is both scientific and practical, with high stability and strong operation. It supports a variety of work materials, greatly improving the work ability and practical ability.

At the same time, he is also compatible with any type of CAD design software. Each program file can store 500 cutting data, can store 2000 user program files, and can store up to 300,000 hours of memory. The machine can change the paper feed speed, has the function of statistical cutting data, paper shift shrinkage correction, and the industrial size color screen after the knife front size display function. The paper feed speed of this system is 6-13 m/min. The paper feeding positioning accuracy can reach 0.01 mm.

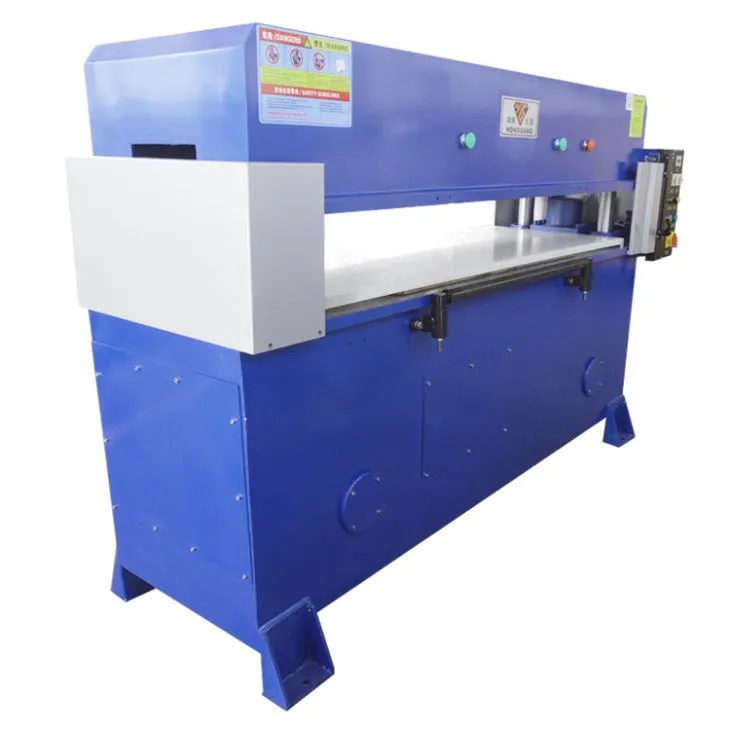

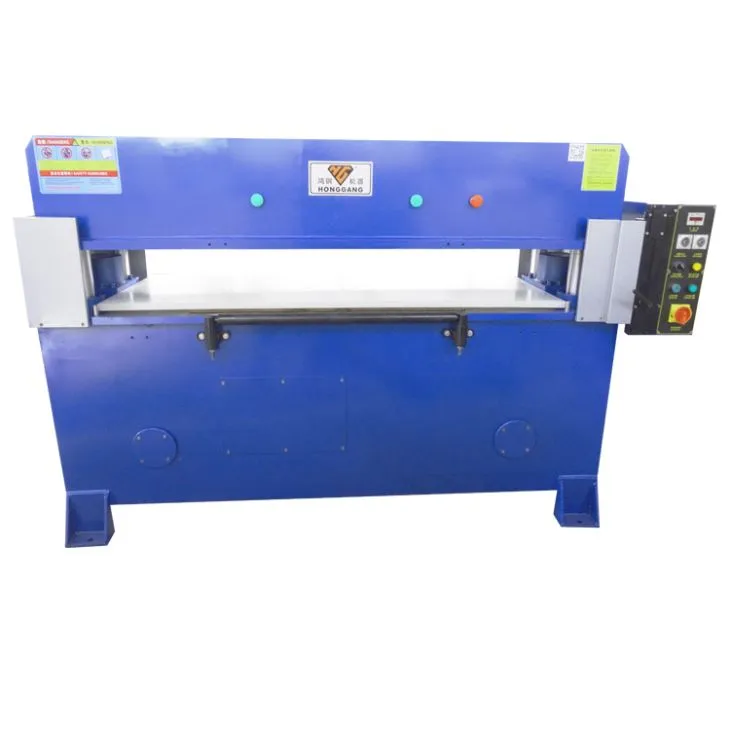

Machine detail:

cutting machine (5)

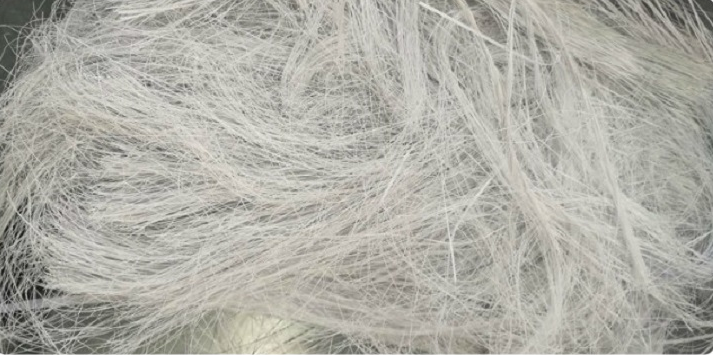

Cutting Effect:



FAQ:

1.How to maintain the machine?

->1.  Replace hydraulic oil

2. Clear dust

3. Fastening bolt

4. Check lubrication system

5. Check the parallelism of the table


2. How does your factory control the machine quality ?

->We have some QC staffs to inspect and test the machine . every machine must be tested for 12-16 hour before leaving factory .


3.Are you a factory or trading company?

->We are a factory and manufacturer
