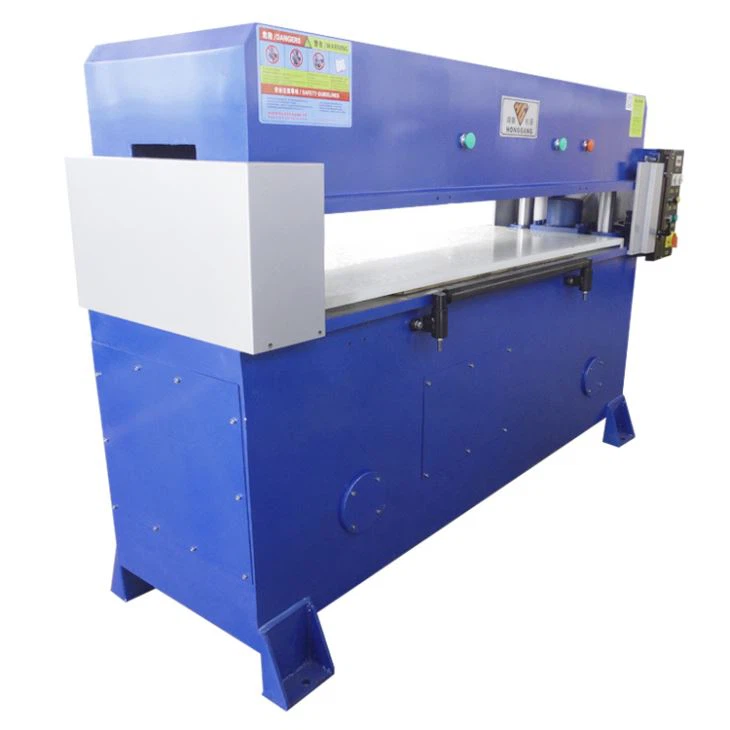

Hydraulic Die Leather Cutting Machine


1.Application:

This hydraulic cutting machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:

  • Automotive interior

  • Sheet material industry supplies

  • Floor mats

  • Abrasives, abrasive paper

  • Leather and leathergoods – shoe uppers, wallets, purses, belts

  • Lampshades – fabric or plastic, with or without cut outs

  • Clothing – components for hats, ties, collars, shoulder pads

  • Cork gaskets and mats

  • Filters for machinery, breathing apparatus and the medical industry

  • Foam and sponge – gaskets, packaging, consumer products

  • Footwear components – shoes, insoles, insole socks, uppers, straps

  • Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets

  • Rubber – gaskets, seals, washers

  • Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties

  • Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.


2.Feature:

1.Automatic Cutting Machine is applicable to continuous and large-batch cutting of nonmetal materials such as fabric leather, carpet, rubber, film, foam and cloth etc. in large-scale factories by die cutter.

2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed.

3. Can work in fully automatic, semi-automatic, manual mode;

4. The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine.

5. The central automatic lubrication system can guarantee the machine precision and enhance machine durability

6. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.

7. The unwinding system can be designed based on customer's requirement.




2. technical data:

Technical parameters

No

Models

HG-B30T/63''

1

Input power source

220V/380V/415V

2

Cutting Area(mm)

610*1600mm,610*1220mm or custom

3

Machine Dimension(mm)

1950*1320*1260mm

4

Stroke(mm)

50-240mm

5

Operation precision

±0.01mm

6

Motor power(kw)

2.2kw

7

Machine Weight(kg)

2000kg

8

Cutting Force

30Tons,40Tons,50Tons or custom

PS:Cutting force and area can be customized according to your requests
