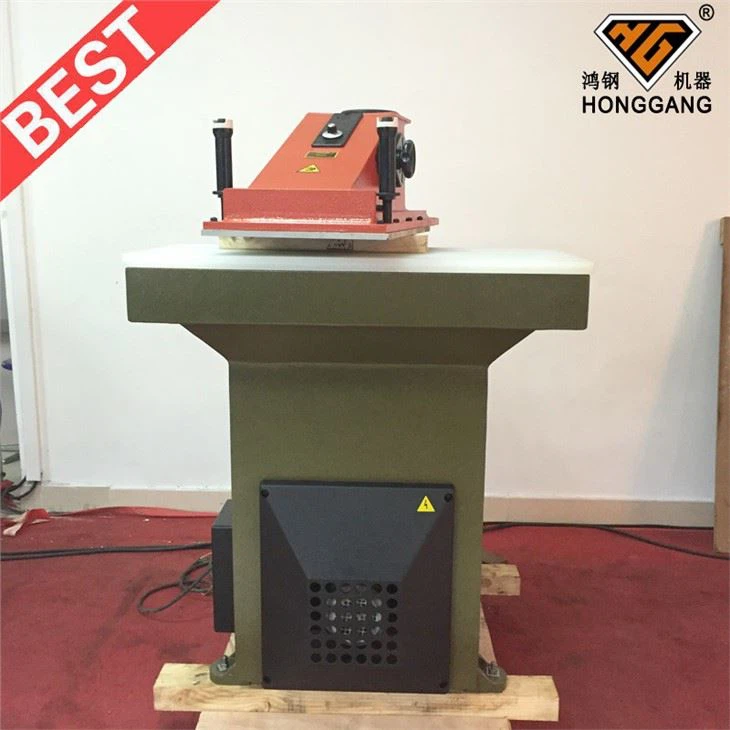

Swing Arm Hydraulic Leather Clicker Press


1.Application:

This leather clicker press is made of high-quality seamless steel pipe and supported by two upper and lower holes to ensure flexible rotation of the upper strike plate and good reliability. It is used for die cutting leather, rubber slipper insole, plastic bags, shoe upper, leather and so on.


2. Feature:

1. Leather clicker press has specially designedoil system, can easily adjust the height of the swing arm, after change cutter height, you do not need to make any adjustments.

2. The high-quality seamless steel pipe column is supported by the upper and lower holes to ensure the flexible rotation of the upper strike plate and the reliable edge.

3. The precision of the upper and lower work surfaces is stable, ensuring the same force at each cutting point, avoiding the unevenness of the layers.

4. The stroke is controlled by an electronic delay circuit, which is easy to adjust with the height of the cutter, and has a micro adjuster, which is the most accurate.

5. The rocker arm cutting head is free to rotate, the line of sight is the best in operation, the material selection is convenient, and the efficiency is improved.

6. Rocker arm cutting head, good visual field during operation, convenient material selection, and sufficient pressure, any soft material can be competent.

7. The cutting head of special material is durable and has the best cutting effect.

9. The position of the swing arm is adjusted by the handwheel at the upper end of the machine, and the punching stroke is adjusted by the time timer, so that a good cutting position can be obtained, the work efficiency is improved, and the service life of the die and the pad is prolonged.

10. Use two-handed operation switches to ensure the safety of the operating staff.


3. parameter:

Model : HG-D20T

Machine Dimension: 900*980*1410 mm

Cutting area: 900*430mm

Cutting Force: 20 Tons,25Tons

Stroke:0-90mm

Power: 220V/380V/415V,50-60HZ


4. picture:





5. Application:
