Manual die cutting machine

Leather Cutting Machine

Leather Cutting Machine

The leather cutting machine used for die cutting leather,leather sample,leather bag,leather shoe plane,seat cover,foam,cleaning sponge,EVA ,all non-metallic and so on....
Chat Now

Hydraulic Die Leather Cutting Machine


1.Application:
The leather cutting machine also called hydraulic die cutting machine, it can be used to determine size, separate and cut leather of small facet area and other materials, used for die cutting leather,leather sample,leather bag,leather shoe plane,seat cover,foam,cleaning sponge,EVA ,all non-metallic and so on.

The machine is applicable to cutting of various nonmetal materials by die cutting.


2.Feature:

1. The efficiency is excellent. Excellent structure design.
2. Safe and easy to operate, even an inexperienced worker can operate.
3. Its working is smooth and beautiful too.
4. High quality parts ensure long life of the machine
5. Easy to clean up, minimize the damage.

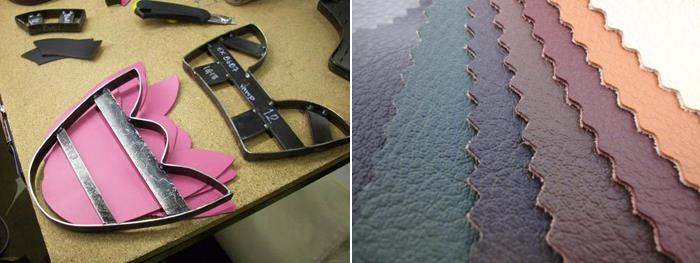

leather cutting machine.jpg



2. technical data:

Technical parameters

No

Models

HG-B30T/63''

1

Input power source

220V/380V/415V

2

Cutting Area(mm)

610*1600mm,610*1220mm or custom

3

Machine Dimension(mm)

1950*1320*1260mm

4

Stroke(mm)

50-240mm

5

Operation precision

±0.01mm

6

Motor power(kw)

2.2kw

7

Machine Weight(kg)

2000kg

8

Cutting Force

30Tons,40Tons,50Tons or custom

PS:Cutting force and area can be customized according to your requests


3. sample photo:


Hot Tags: leather cutting machine, manufacturers, automatic, price, for sale
