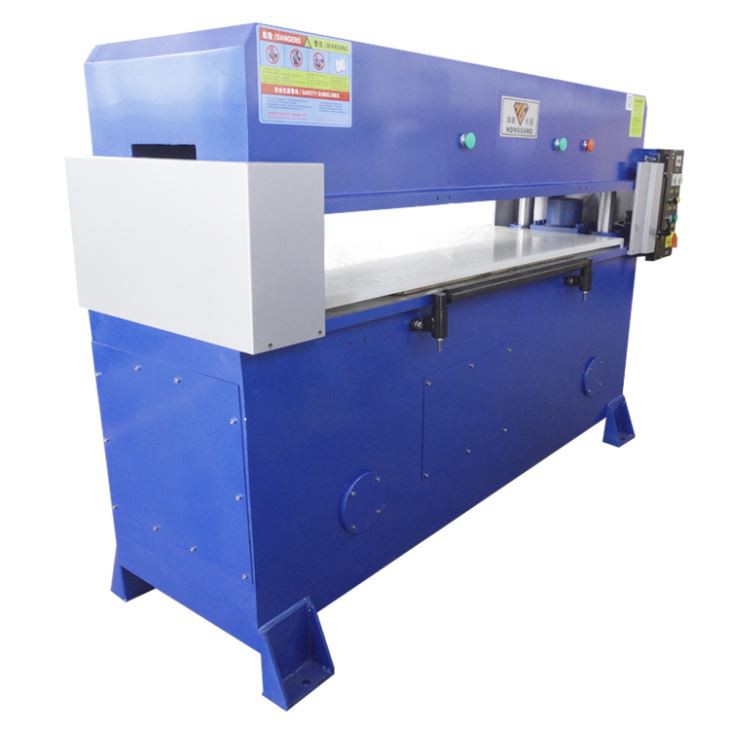

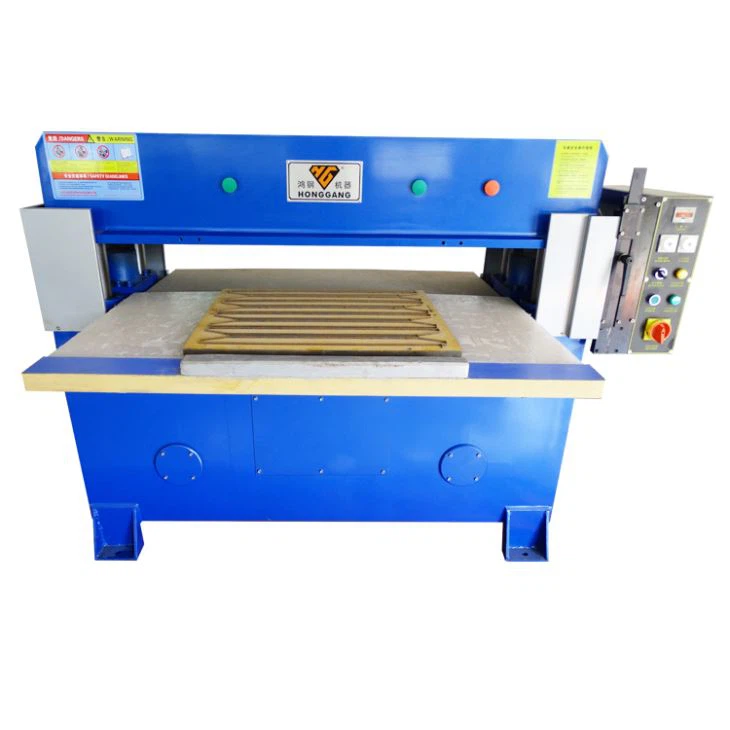

Shoe Sole Cutting Machine



1. Machine detalls:

This machine is also called four column cutting machine, for shoe sole cutting machine is popular in rubber shoes products factories, as its flat wide cutting area and easy to operate.

HG four column shoe sole cutting machine, manual type from 25 tons to 50 tons, or up; area of 610x1600mm, or as request.






2.Product parameter:



     Model

Force

Dimension

Cutting    Area

Power

Stroke

Weight

HG-A30T/63

30    Tons

2330*1320*1260mm

610*1600mm

2.2kw

50-160mm

1900kg

HG-B30T/63

30 Tons

2330*1320*1260mm

610*1600mm

2.2kw

50-240mm

2000kg

HG-B30T/48

30 Tons

1950*1320*1260mm

610*1220mm

2.2kw

50-240mm

1900kg

HG-A40T/63

40 Tons

2330*1320*1260mm

610*1600mm

4kw

50-160mm

2500kg

HG-B40T/48

40 Tons

1950*1320*1260mm

610*1220mm

4kw

50-240mm

2400kg

HG-a50T/63

50 Tons

2330*1320*1260mm

610*1600mm

4kw

50-240mm

2900kg

HG-B50T/48

50 Tons

1950*1320*1260mm

610*1220mm

4kw

50-240mm

2800kg



3. Feature:

1.Auto-balance structure of double-cylinder, four-column and selfbalance connecting rod, makes sure equal pressure in any working area.

2.Central automatic lubrication system, increases machine durability, prolong the working time.

3.Suitable for single-layer or multi-layer sheet or roll materials.

4.Slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.

5.Stroke adjustment device, makes stroke simple and correct to adjust with cutting die, cutting board and materials.

6.Suitable for single-layer or multi-layer sheet or roll materials.

7.We also produce BIG FORCE from 60 tons to 200 tons shoe sole cutting machine.



4. cutting sample photo:
