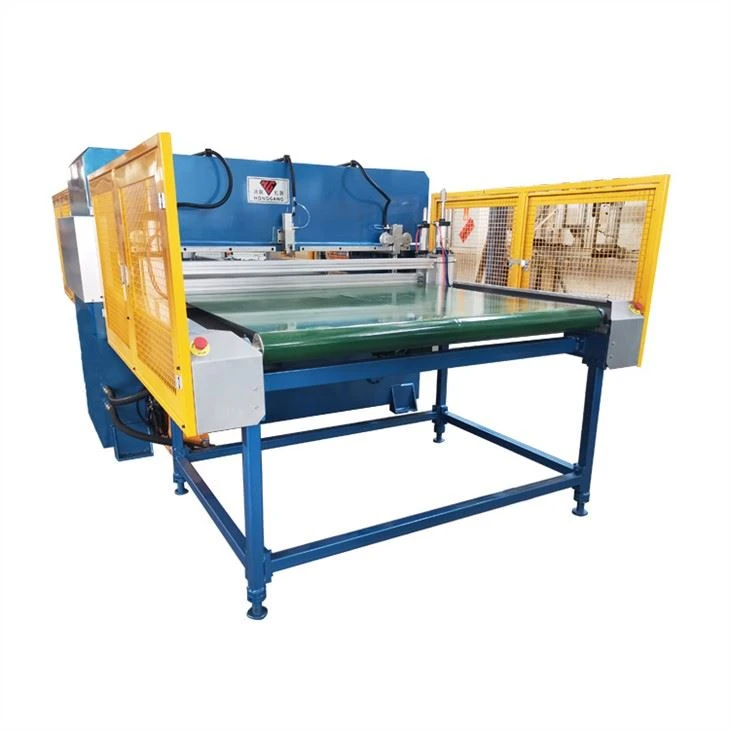

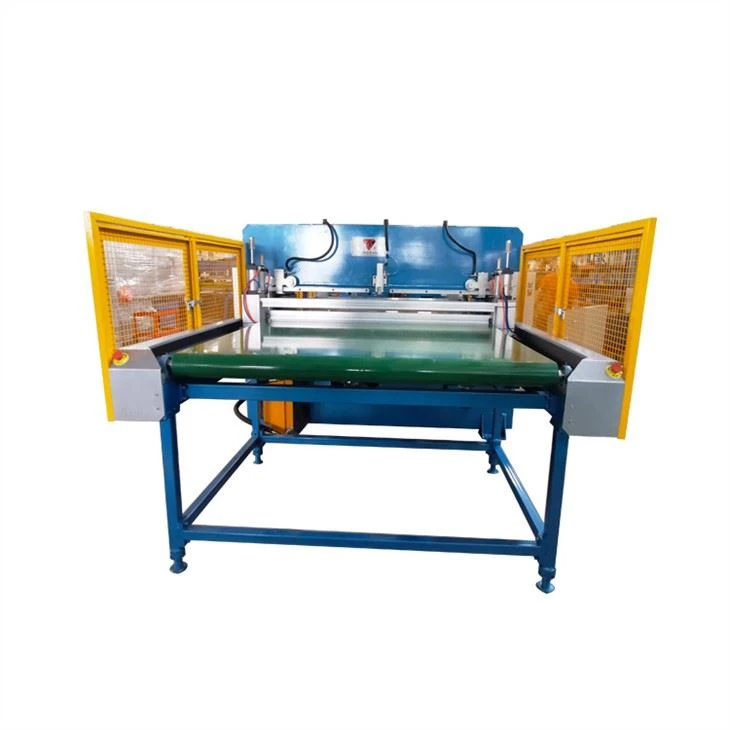

Automatic Feeding Cutting Machine

The automatic feeding cutting machine is fully automatic, it used for die cutting soundproof products, car seat covers, multi-layer fabric etc. Rolls materials....

Roller Fully Automatic Feeding Cutting Machine


1. Application:

Automatic Feeding Cutting Machine can die cut any nonmetal materials such as leather, foam, sponge,blister,and very suits to the materials which can  roll to a roller, thanks to its automatic roller feeding system.


2. Feature:
1. Automatic roller-in-feeding, movable clamp out-feeding, allows all cutting process without any labor.

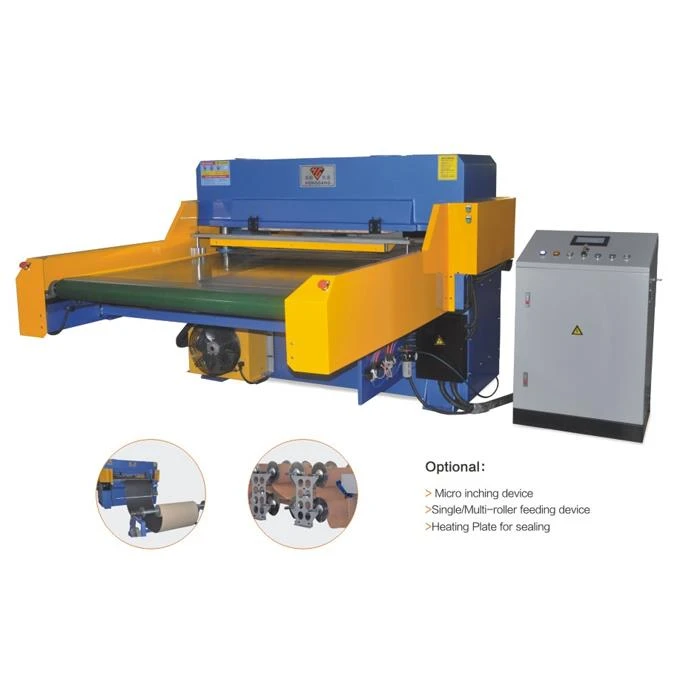

2. Roller device with auto rolling function to roll materials easily; rollers easy to change.
3. Controlled by PLC(Programmable Logic Controller), with touching saeen, to adjust working pressure, stroke, feeding speed easier, faster and more precise.

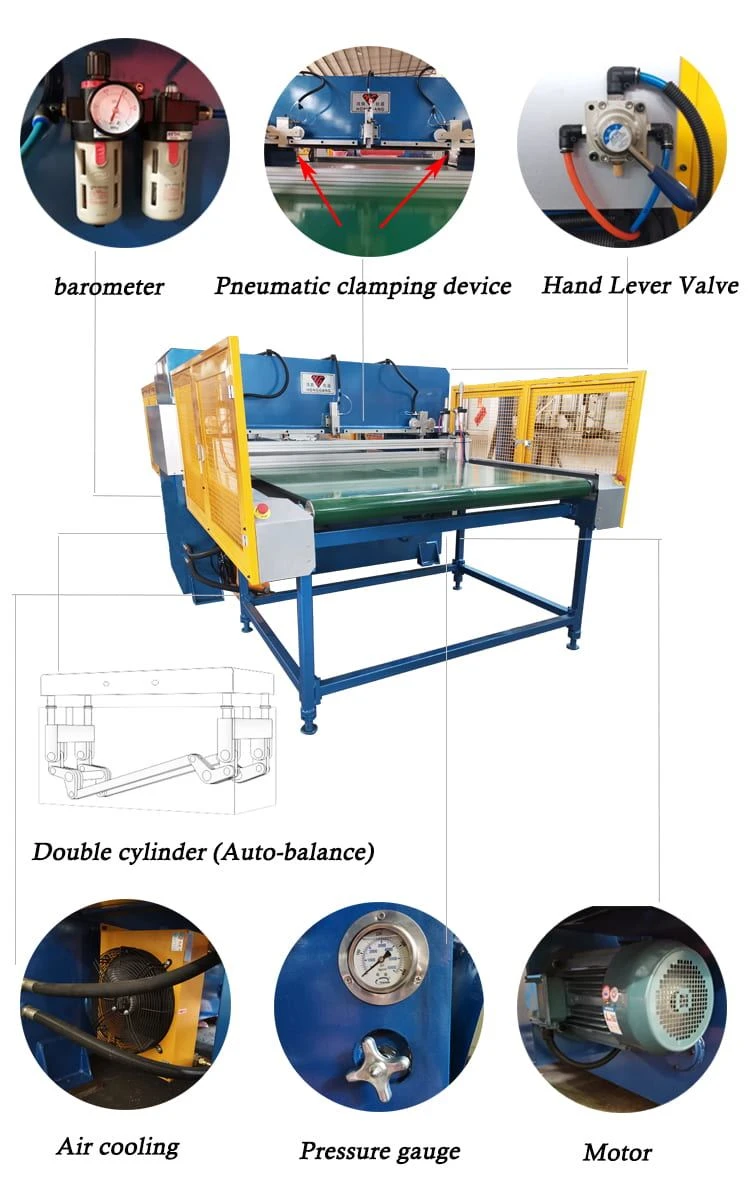

4. Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure In any working area.


3. Parameter:

Model.No

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-B60T

60 Tons

2100×2200×1700mm

810×1400mm

5.5kw

50-230mm

4000kg

HG-B80T

80 Tons

2100×2200×1700mm

810×1400mm

7.5kw

50-230mm

4500kg

HG-B100T

100 Tons

2100×2200×1700mm

810×1400mm

7.5kw

50-230mm

5000kg

HG-B120T

120 Tons

2100×2200×1700mm

810×1400mm

11kw

50-230mm

5500kg

HG-B150T

150 Tons

2100×2200×1700mm

810×1400mm

11kw

50-230mm

6000KG

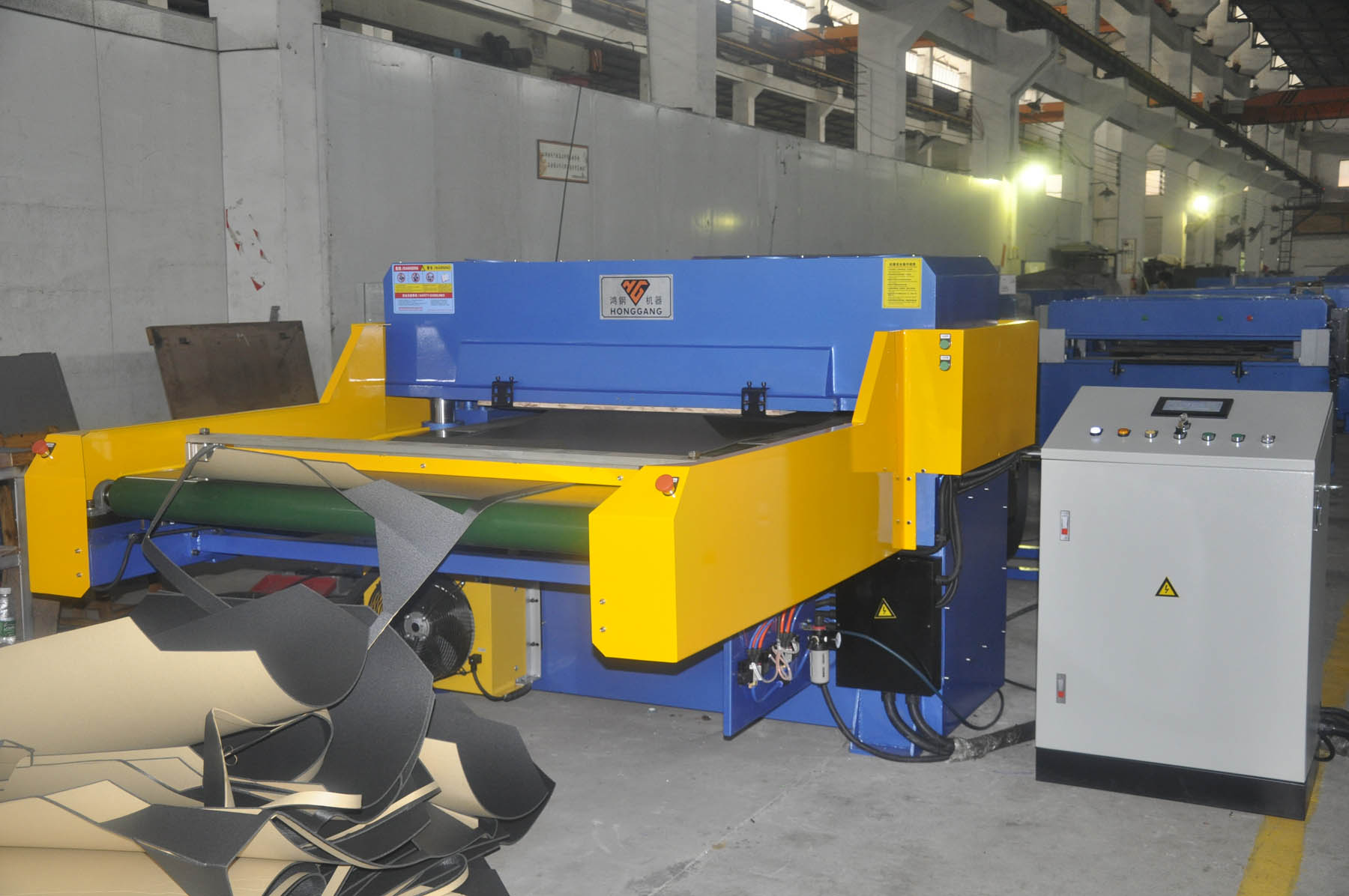

4.The production process:

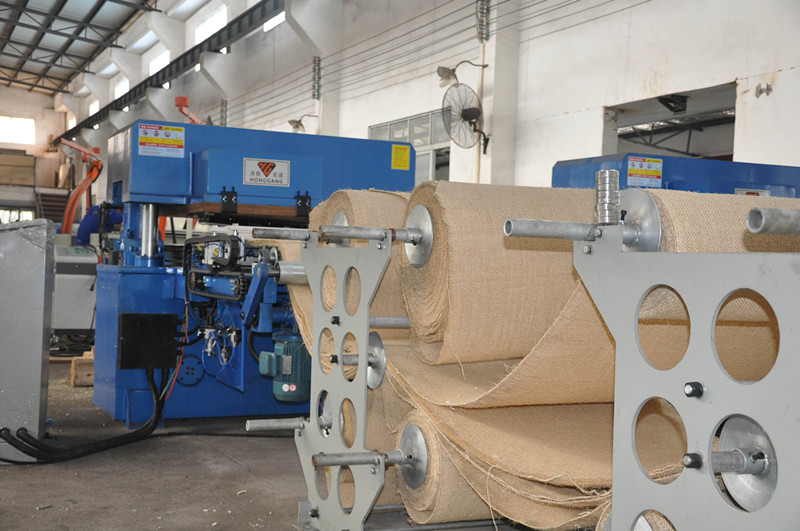

1)The chain-system roller rolls materials autmaticly with high speed and high quality.
2)Feeding bar to hold matiral to the right station.
3)After cutting, the chaind moving belt conveys the samples with live splint.
4)The samples.


5. Picture:
