Fully Automatic Full Belt Roller Feeding Cutting Machine


This Roller Feeding Cutting Machine comes with roller feeding system. It replaces the manual feeding method of traditional cutting machines, which greatly improves the production efficiency. This machine is suitable for large-scale continuous die cutting of non-metallic materials such as carpet, leather, rubber and fabric for large-scale factories.

The conveying part is controlled by PLC. The servo motor drives the material to be input from one side of the machine. After die cutting, it is output from the other side to ensure accurate feeding and stable operation; and the feeding length can be easily adjusted through the touch screen.


1.  Application:

Used for die cutting EPE foam packaging, soundproof products, plastic film, multi-layer fabric etc thin materials.


2.  Feature:

1. Automatic roller belt feeding, movable cJamp out-feeding, allows all cutting process without any labor.

2. Roller device with auto rolling function to roll materials easily; rollers easy to change.

3. Controlled by PLC(Programmable Logic Controller), with touching screen, to adjust working pressure, stroke, feeding speed easier, faster and more precise.

4. Auto-balance structure of double-cylinder, four-column and sett-balance connecting rod, makes sure equal pressure in any working area.

5. Computer control system, touch screen display, easy, fast and accurate operation.

6. The input and output of the material are completed on the conveyor belt, and the die cutting of the material is also automatically completed on the conveyor belt.

3. Parameter:

Model.No

Cutting Force

Dimension

Cutting Area

Motor Power

Stroke

Net Weight

HG-B60T

60 Tons

3700×2350×1900mm

810×1600mm

5.5kw

50-230mm

4500kg

HG-B80T

80 Tons

3700×2350×1900mm

810×1600mm

7.5kw

50-230mm

5000kg

HG-B100T

100 Tons

3700×2350×1900mm

810×1600mm

7.5kw

50-230mm

5500kg

HG-B120T

120 Tons

3700×2350×1900mm

810×1600mm

11kw

50-230mm

6300kg

HG-B150T

150 Tons

3700×2350×1900mm

810×1600mm

11kw

50-230mm

6500KG

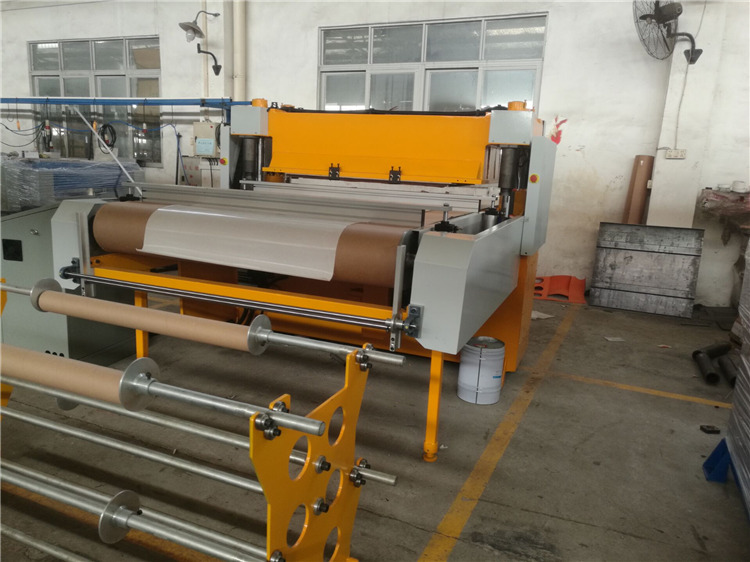

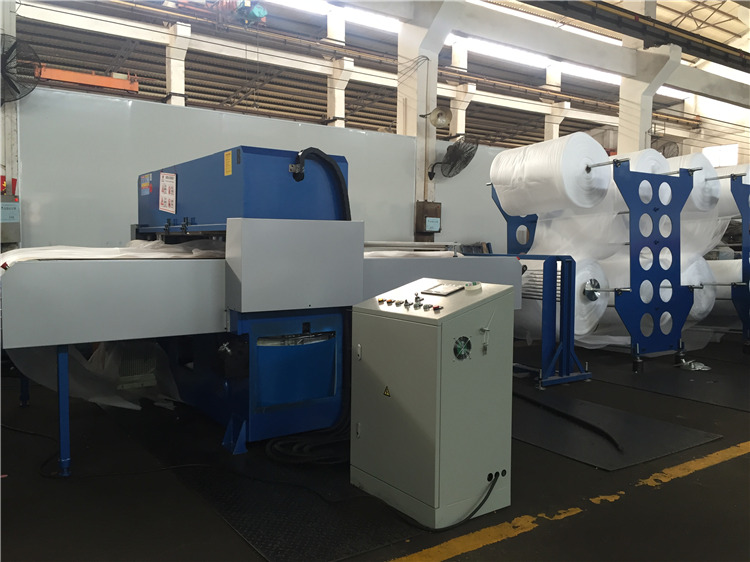

4. Picture:


5. Exhibition
