Plastic Thermoforming Machine

Automatic Plastic Thermoforming Machine

Automatic Plastic Thermoforming Machine

Automatic Plastic Thermoforming Machine uses the latest international plastic sheet forming technology, with a integrated design of machine, electricity and gas parts.The use of curved arm of the forming station and the cutting station: efficient and stable.
Send InquiryChat Now

Automatic Plastic Thermoforming Machine uses the latest international plastic sheet forming technology, with a  integrated design of machine, electricity and gas parts.

The use of curved arm of the forming station and the cutting station: efficient and stable.

The advanced heating system adopts advanced temperature control module and independent heating element control, with fast response and short time, achieving high efficiency and low energy consumption.

The Automatic Plastic Thermoforming Machine has the advantages of high speed, low energy consumption, low noise, high safety and hygienic degree, convenient operation and maintenance, etc., and is trusted by customers.

1. Parameter:

Thermoforming area: 710×850×130 mm (W*L*H)

Thermoforming speed: 12-20 stroke/minute

Machine size: 11000×2300×2600 mm (L*W*H)

Heat furnace size: 7800×2600 mm (Three pieces ofbaking sheet)

Punching size: 710×850 mm

2. Application:

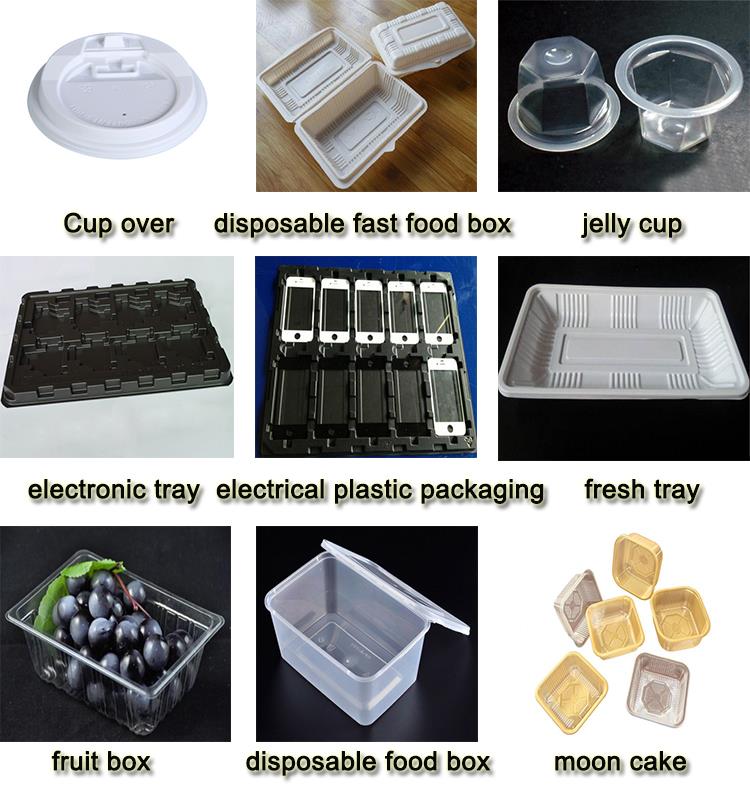

Automatic Plastic Thermoforming Machine is suitable for ABS, PS, PE, PET, CPET, APET, PC, PP, PVC, HIPS, PMMA and other thermoplastic materials. It can produce disposable snack boxes, food boxes, fresh trays, moon cake trays, instant noodle bowl lids, various cup lids, beverage cups, ice cream cups, jelly cups, packaging boxes, bulbs, flower pots, trays, cosmetic linings , daily necessities blister packaging, pharmaceutical blister packaging, alcohol blister packaging, electronic blister packaging and other products.

3. Feature:

1. It adopts positive and negative air pressure forming, laser punching, heating forming, and die cutting.

2. The whole set is controlled by servo motion controller, including motion, temperature control, each die guide, temperature sensing detection, man-machine interface operation, tunnel heating.

3. Reduce labor, easy operation, improve production efficiency, reliability, and high automation

4. The combination of positive and negative pressure, the thickness of the same material is better than the thickness of the negative pressure plastic forming product, the weight is more stable, and the thickness is uniform.

5. Forming, cutting, stacking, and feeding are all servo-controlled, accurate and error-free.

6. The electric furnace is made of stainless steel, which avoids the use of iron plate in the same type of machine to produce iron oxide under the action of high temperature. The product is scrapped on the sheet, and the built-in thermal insulation material minimizes heat loss and saves energy.

7. It adopts industrial control PLC and microcomputer man-machine interface control, and the operation is precise and easy to operate.

8. The machine has heating-forming-cutting-stacking counting three-station automatic function. Feeding, heating, forming, punching, stacking, counting, and conveying are completed simultaneously.

9. Each servo motor is equipped with a thermal protection device to prevent the servo motor from being overloaded and over-current due to long-term operation and damaging the device. Each motor is equipped with an overcurrent protection device.

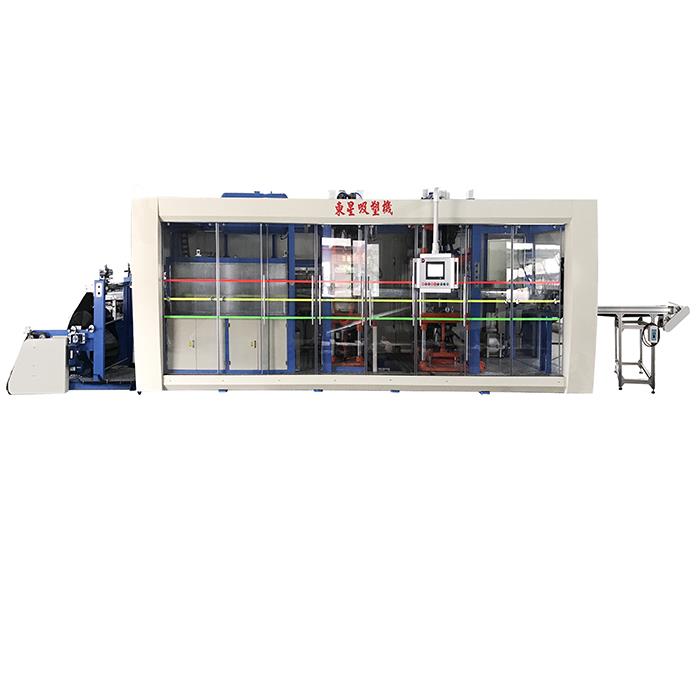

4. Automatic thermoforming machine - Picture:

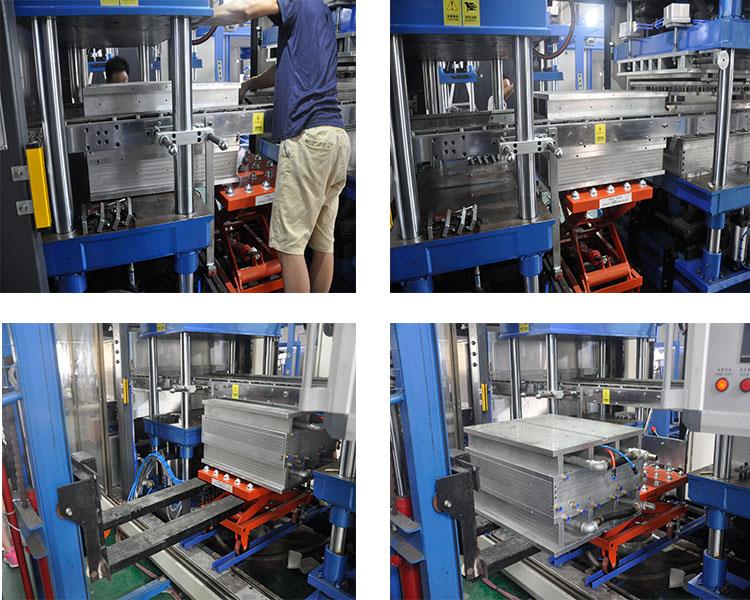

5.How to change the mould?

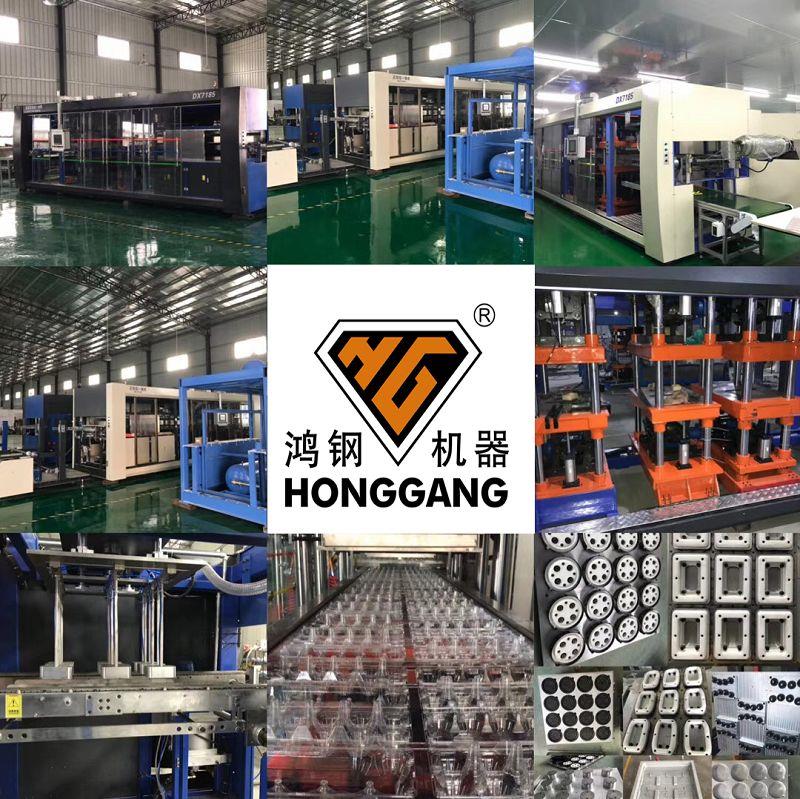

6.Production process

Production process

7.FAQ

1)What's warranty of machine?

->12months Warranty

Life-long maintenance service for machine



2)What's your after-sales service?

->Engineer available to serve machines over seas; Email and calling service in working hour;  24 hours door to door in domestic.



3)Can we test the our material by your machine free?

->Yes, please contact us to send your matrial.

4)Is it easy to operate for new users?

->This is very simple, we provide you with an English operation manual, and our technicians can also help you through Skype or other instant messaging tools.


If you have any question for this automatic plastic thermoforming machine, please contact us, we would very happy to reply you!
