PVC Sheet Thermoforming Machine

Configuration:

Pulling:

Delta servo driver

temperature control:

Delta temperature controlling moduls

Circuit:

Japan Fuji

Transmission:

Imported from Japan

Vacuum system:

Germany imported vacuum pump

parameter:


Sheet  material

PP/PS/PVC/PET/HIPS etc.

Max forming area

770×550mm

Max forming depth

≤100mm

Max plastic width

≤790mm (Adjustable)

Max plastic sheet dia.

1000mm

Thickness of plastic sheet

0.1-2mm

Forming speed

20-35times/m

Air pressure

0.6-0.8mpa

Air consumption

3m³/min

Power consumption

58KW/H

Machine Kilowatt consumption

≤82KW

Weight

9500kg

Power supply

380v/50Hz Three phase four wires

Size of machine

L11500*W2400*H2400

Specification:


Molding size: 610*400*130mm (width, length, height)

Molding time: 12-20 times / min
Hot stove size: 650*1300mm (three sections)

Description:

This machine has the heating, forming, punching, cutting, stacking and counting functions. It can be widly adapt to the plastic packaging materials such as PLA, PS, PET, PP, PVS, ABS etc. Products range contain all kinds of bowl, cover, box, tray, dish, medicine and industry blister packaging. This machine is widely used, strong versatility, positive pressure and negative pressure fast forming speed, low energy consumption, low noise, high degree of safety and sanitation, convenient operation and maintenance and other advantages of the majority of customer trust.

Application:

Commonly used material such as PVC,PET, APET, PETG, PP, PE, PS, EPS, EPOS, Starch biodegradable material, Photoelectric biodegradable materials, Flocking material ect. Widely used in food,  hardware,  electronics, stationery,  medical supplies, daily necessities, cosmetics, handicrafts,toys, and other industry products of mass peoduction.

Feature:

1. The electrothermal furnace's temperature control systhem adopts full computerize intelligent automatic compensation controlling,individual partition adopts digital input, has a high precision fine-tuning, temperature uniformity, fast temperature elevation(only 3 minutes from 0-400 degrees),stability(not influenced by external voltage, temperature fluctuation is less than 1 degree). Lowenergy consumption(energy saving about 15%),electrothermal furnace service life.

2 . Integrate forming, cutting, stacking and counting.

3. At present the most advanced CAM structure(equipped with SKF bearings).

4. Movable electric furnace (all aroung moving),suitable for the smaller products.

5. Leftover material automatic recycle.

6. The width of feeding caterpillar itrack can be adjust individual or controlled by motor.

7. Electric furnace is removable from the device automatically.

8. Automatic feeding devices, save labor intensity.

Our Service

We can sure you that once there emerges any problem in the first year, we will provide guideance online or send engineers to repair abroad.

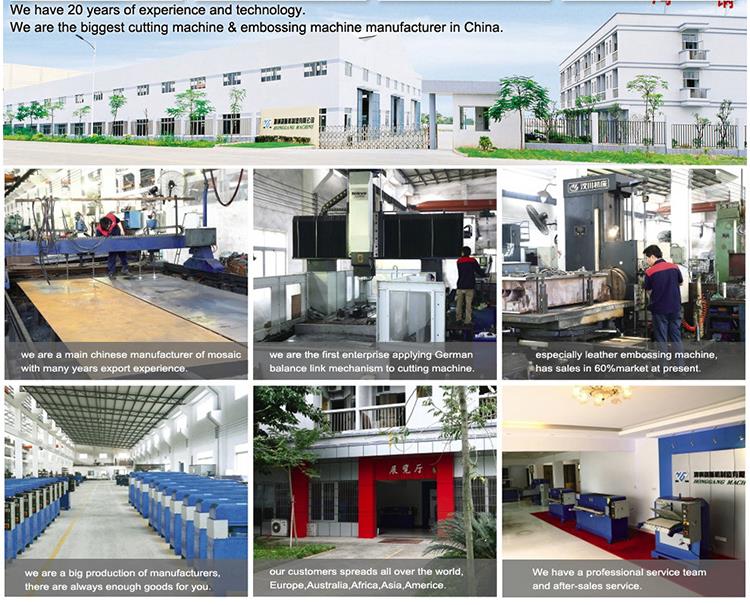

Welcome to visit our corporate and warehouse, you can test the quality of our product in person. If you are satisfied with the result, we can make deal at once.
