Plastic Thermoforming Machine

Plastic Thermoforming Punching Machine

Plastic Thermoforming Punching Machine

This plastic thermoforming punching machine used for producting high demand of plasticpizza boxex, plastic container, disposable fresh / fast food and pharmaceutical, disposable cup lid thermoforming, electrical blister packaging, plastic sheet etc....

Plastic Disposable Cup Lid Plastic Thermoforming Punching Machine


Foshan Nanhai Honggang Cutting Machine CO.,LTD is founded in 2004. For more than 20 years, our enterprise mission is to realize producing cutting machine and plastic thermoforming punching machine. We focus on researching, developing, manufacturing and marketing on plastic thermoforming punching machine, plastic cup production line, BOPS plastic thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc.We are first manufacturer in domestic to produce plastic cup in one line with thermoforming, stacking, transmitting, counting, and packing automatically. We get a lot of invention patents and utility model patents for our products. Meanwhile, there are more than 72 countries and regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil, Chile, Bolivia, Saudi Arabia, Yemen, Peru, etc. We insist in "customer goes first, sincere service" as enterprise service purpose, and welcome the cooperation and guidance from old and new customers.


1.Application:

This plastic thermoforming punching machine used for producting high demand of plasticpizza boxex, plastic container, disposable fresh / fast food and pharmaceutical, disposable cup lid thermoforming, electrical blister packaging, plastic sheet etc.



2. parameter:

Forming speed: 12 to 20 stroke/minute

Forming area: 710*850*130 mm

Punching size: 710*850 mm

Machine size: 11000*2300*2600 mm

Heat furnace size: 7800*2600 mm (Three pieces ofbaking sheet)


3. feature:

1. Fully servo driven machine.no noise.no vibration,forming good and fast.

2. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.

3. Fully machine in compact structure,taking small floor space;

4. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.

5. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet.reaching without wasting materials;

6. Auto cutting,auto counting,auto transmission by PLC.

7. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.

8. Labor saving,only 1-2 workers packing.

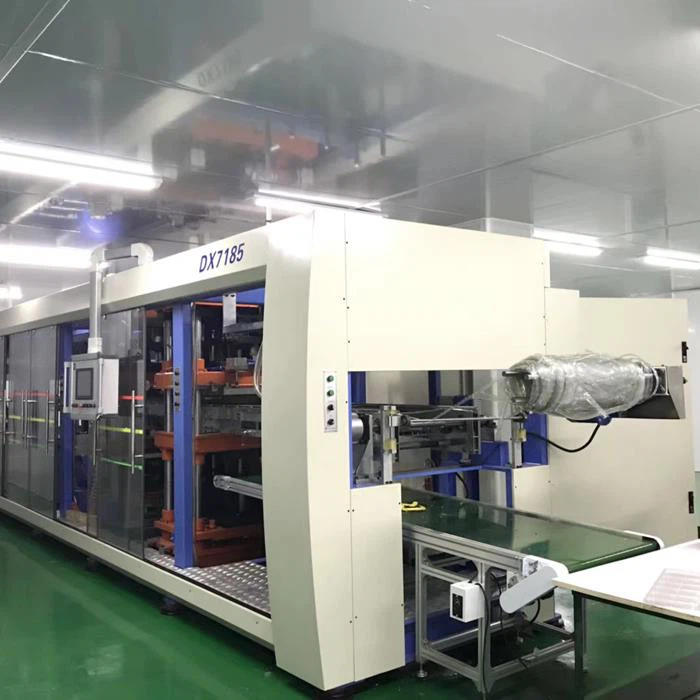

4. picture:
