The hydraulic EVA sheet cutting machine can be used not only for sheets but also for coils. The four-post automatic balance structure ensures the accuracy and ease of use of the cutting line. The machine has double oil cylinders, four columns plus an automatic balancing structure with balancing links to ensure the same cutting depth at each cutting position.
Technical data
Models | HG-B30T/63'' |
Input power source | 220V/380V/415V |
Cutting Area(mm) | 610*1600mm or 610*1220mm or custom |
Machine Dimension(mm) | 1950*1320*1260mm |
Stroke(mm) | 50-240mm |
Operation precision | ±0.01mm |
Motor power(kw) | 2.2kw |
Machine Weight(kg) | 2000kg |
Cutting Force | 30Tons,40Tons,50Tons or custom |
Feature:

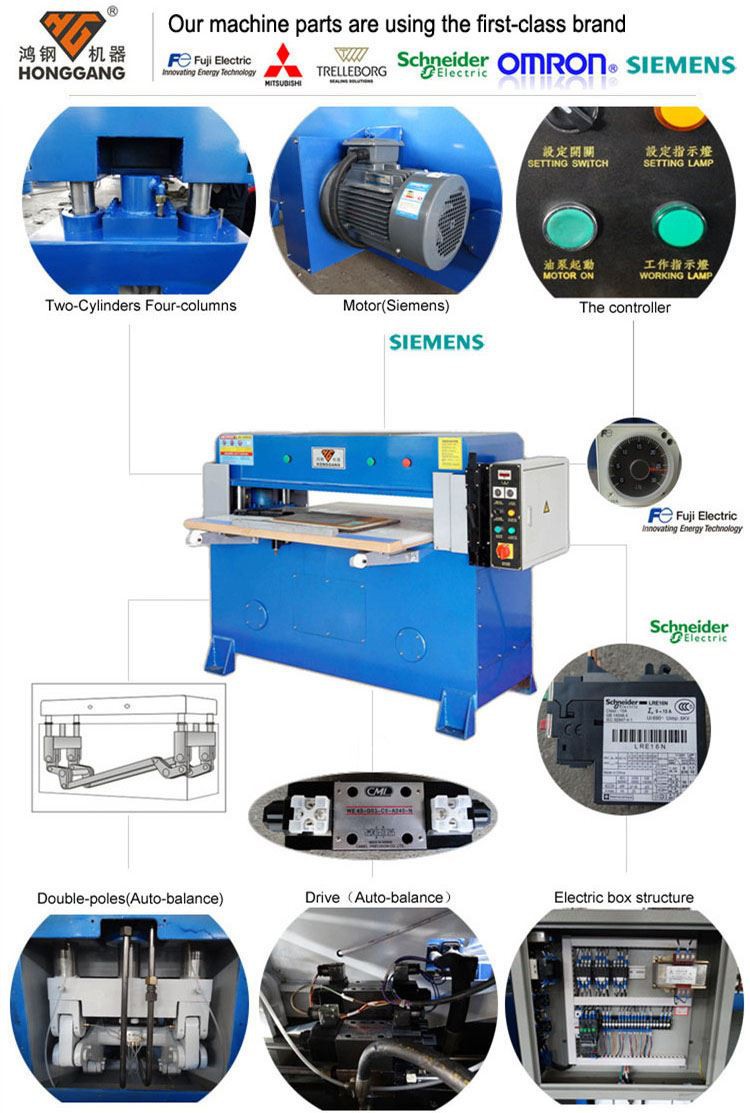

hydraulic EVA sheet cutting machine two-cylinder four-column, self-balancing linkage automatically balances the structure to ensure any working area is evenly pressurized. When the cutting dies contacts the material, it decelerates to determine the accuracy between the upper and lower thick materials. Its stroke adjustment device makes the stroke simple and correct and is adjusted according to the cutting die, cutting plate, and material. Its central automatic lubrication system increases machine durability, extends working hours, increases productivity by two to three times, and is more economical.
Exhibition
