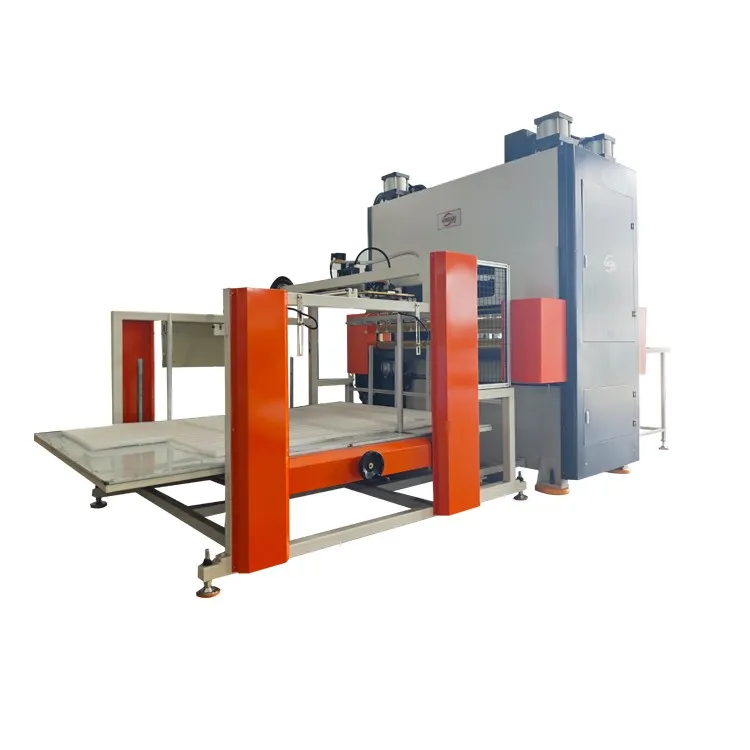

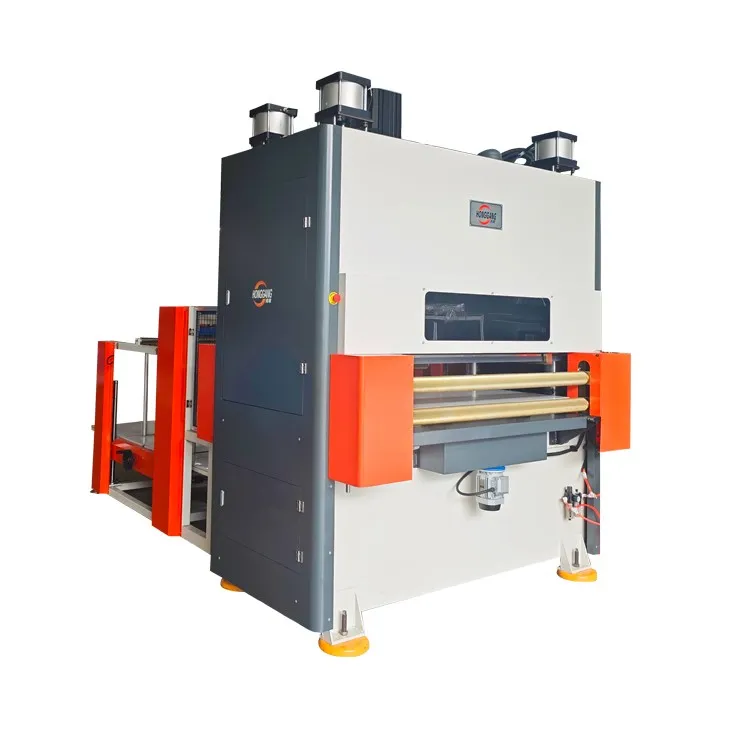

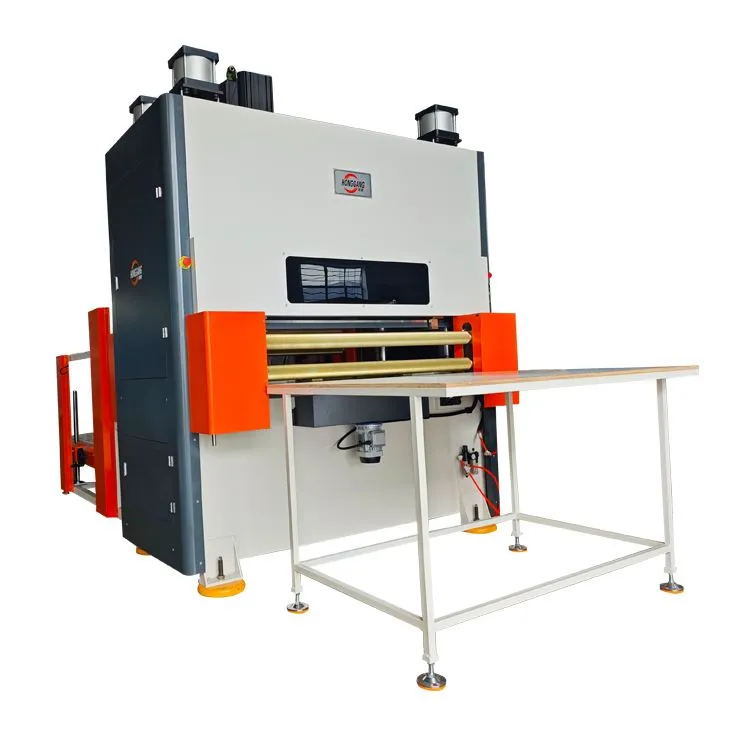

Full Electric Servo EPE Foam Die Cutting Press Machine | Precision Automatic Foam Cutting Equipment
Products Description
Our all-electric, multi-link servo die cutting machine represents the latest generation of cutting technology, specifically designed for the efficient processing of EPE foam, EVA, and sponge-available in both sheet and roll formats. Powered by a fully electric servo system, the machine utilizes high-precision servo motors to directly drive the linkage mechanism. This configuration ensures exceptional control accuracy, rapid response speeds, and stable operation, fully meeting the rigorous demands of industrial cutting applications. This eco-friendly equipment brings enhanced efficiency, significant energy savings, and a clean production environment to your packaging and foam product manufacturing lines.
📋 Product Executive Summary
| Product | Full Electric Servo EPE Foam Die Cutting Press Machine |
| Application | EPE foam, EVA, sponge sheet & roll cutting |
| Key Advantage | ±0.01mm precision, 60% energy saving, oil-free operation |
| MOQ | 1 set |
| Lead Time | 7-20 days (3 days for stock machines) |
| Certification | CE, ISO 9001 |
| Warranty | 1 year (free parts replacement) |
parameter
| Project | Technical Specifications |
| Model | HG-G150T |

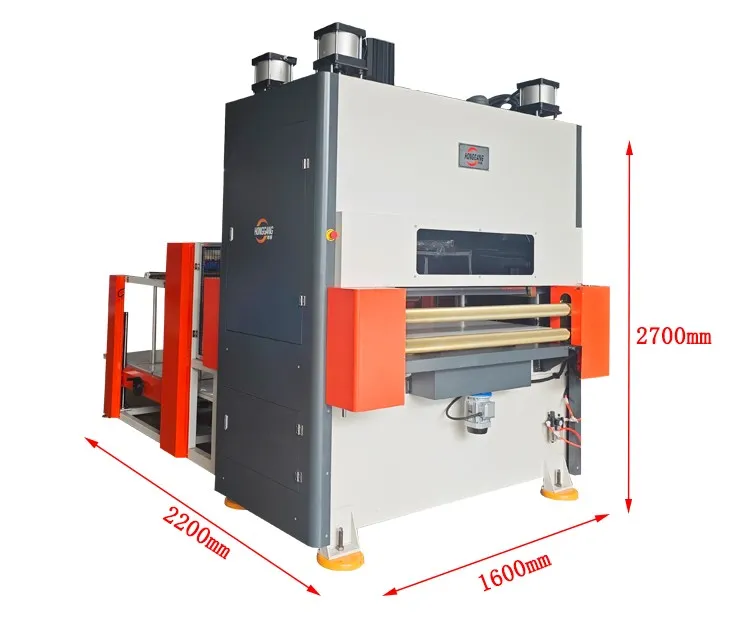

| Overall dimensions | 1600mmX2200mmX2700mm(L*W*H) |
| Main Body Structure | Servo Multi-link Mechanism |
| Feeding Mechanism) | Steel Roller Feeding |
| Cutting Press | 150 T |
| Effective Area | 1320*910mm |
| Stroke | 180mm |
| Machine Shut Height | 30-100mm |
| Maximum cutting Speed | 1000 times/hour |
| Power Supply Requirements | 380V, 3-Phase, 50Hz or customized |
| Total Power | 25kw |
| Machine Weight | 7000kg |
Minimum Order Quantity: 1 set (trial order accepted)
Bulk Order Discount: Available for 5+ sets, contact us for a quote
Production Lead Time: 25 days after order confirmation
Voltage: 380V/50Hz or customized to your local standard
Machine Color: Customizable upon request
Automation Level: Tailored to your production line requirements
Mold Design: Based on your drawings or samples
Private Label: Available for bulk orders
Packaging: Standard export wooden case or plastic film
Anti-rust Treatment: Yes
Shock-proof Padding: Yes
Container Loading: Supervision available upon request
Shipping Terms: FOB, CIF, EXW
Raw material inspection
In-process quality check during assembly
Assembly line testing
24-hour trial run
Final inspection before packing
CE compliance verification
Key Design Advantages
1. Ultra-high cutting precision: Repeat positioning accuracy up to ±0.01mm, reducing die and rubber plate wear; compatible with 6mm thin PP rubber backing plates.
2. Reliable mechanical structure: Stable linkage design with low failure rate, no valve clogging issues common in hydraulic machines.
3. Fast cutting speed: Cycle time within 2 seconds per cut, eliminating hydraulic pressurization delay.
4. Outstanding energy saving: Reduces power consumption by up to 60% compared with traditional hydraulic die cutting machines.
5. Clean & hygienic operation: No continuous lubrication needed, zero risk of oil leakage and material contamination.
Technical Features
1. Auto lifting feeding table: Supports sheet stacking up to 700mm height and roll material connection, greatly reducing manual feeding and improving productivity.
2. Roller automatic feeding: Fully automated feeding, cutting, and discharging process to save labor costs.
3. Rubber plate micro-moving device: Automatically adjusts position after each cut to avoid concentrated wear on dies and extend service life.
4. Low noise & clean: Oil-free, eco-friendly, and suitable for medical packaging, food packaging, and high-standard clean workshops.
Why Choose Our EPE Foam Die Cutting Machine ?
This full electric servo press machine is built to solve the pain points of traditional hydraulic cutters: low precision, high energy use, oil pollution, and frequent breakdowns. With stable performance, fast production and long service life, it is the ideal solution for manufacturers focusing on EPE foam, EVA, and sponge cutting in packaging, electronics, furniture, and medical industries.
❓ Frequently Asked Questions
Q1: What is the MOQ for this machine?
A: The MOQ is 1 set. We accept trial orders and offer volume discounts for bulk purchases.
Q2: What materials can this machine cut?
A: This machine is designed for EPE foam, EVA, and sponge, available in both sheet and roll formats.
Q3: What is the cutting precision?
A: The repeat positioning accuracy is up to ±0.01mm, ensuring high-precision cutting.
Q4: How much energy does this machine save?
A: Compared with traditional hydraulic die cutting machines, it reduces power consumption by up to 60%.
Q5: Is this machine suitable for clean room environments?
A: Yes. It features oil-free operation with zero risk of oil leakage, making it suitable for medical and food packaging clean workshops.
