The manual cutting press is also called cutting machine, cutting bed, clicker press, molding machine, die cutting machine, cutting machine, cutting machine, blanking machine, etc.
The manual cutting press is an indispensable piece of equipment in some light industries. Traditionally, it is a machine that presses a die with the aid of the force of a machine motion to cut a non-metallic material. The modern manual cutting press has undergone some changes. They have begun to use advanced technologies such as high-pressure water jets and ultrasonics in the cutting of non-metallic materials. However, people still classify these devices in manual cutting press equipment.
Manual cutting press channel:
https://www.youtube.com/playlist?list=PLlMbykBA8NZG0aIoBWGDOpHar0rAPNRqg
Single/Double Automatic cutting machine channel:
https://www.youtube.com/playlist?list=PLlMbykBA8NZFWWZ652DQtGAYjTOkQFNxT
Parameter:
Model.No | Cutting Force | Dimension | Cutting Area | Motor Power | Stroke | Net Weight |
HG-A30T/63 | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
HG-B30T/63 | 30 T | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
HG-B30T/48 | 30 T | 1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
HG-A40T/63 | 40 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
HG-B40T/48 | 40 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
HG-a50T/63 | 50 T | 2330*1320*1260mm | 610*1600mm | 4kw | 50-240mm | 2900kg |
HG-B50T/48 | 50 T | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |

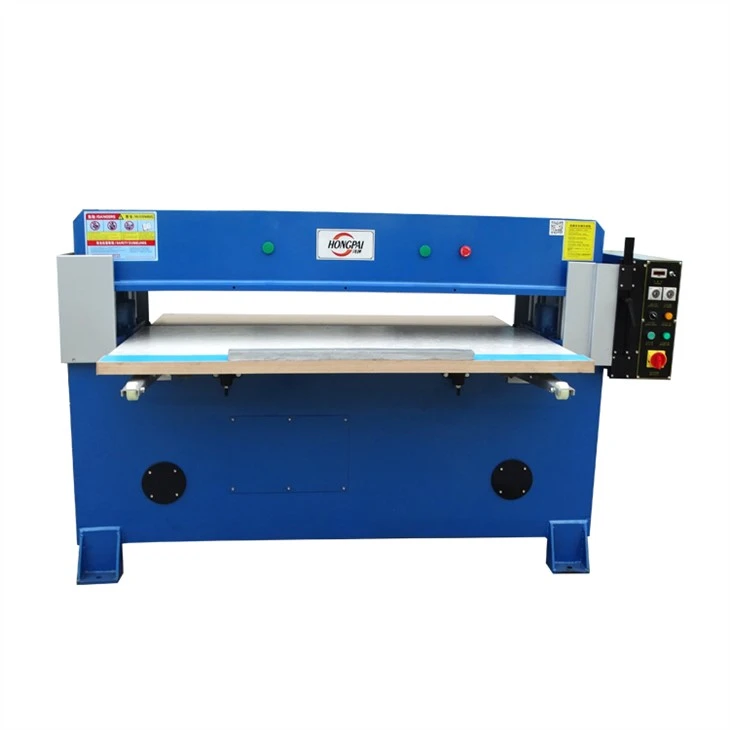

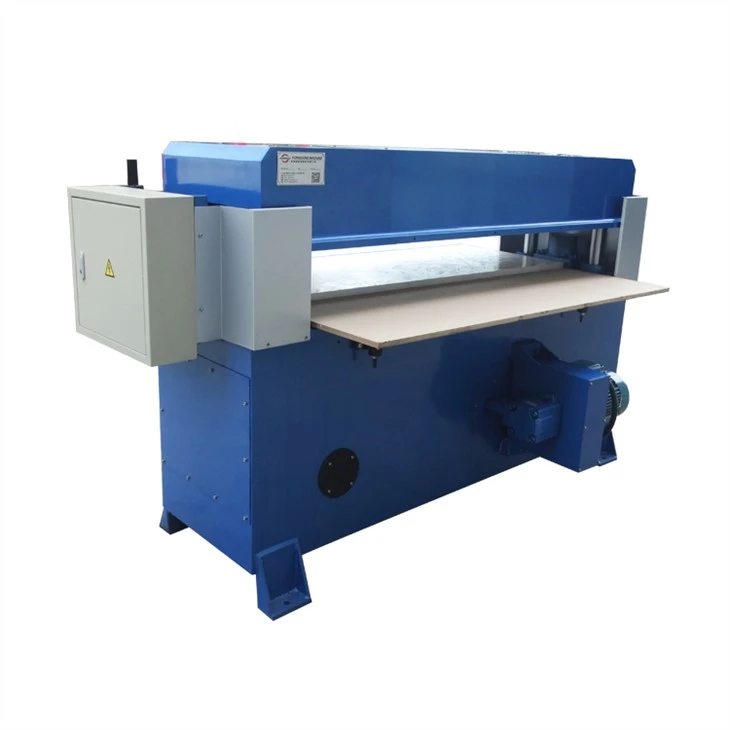

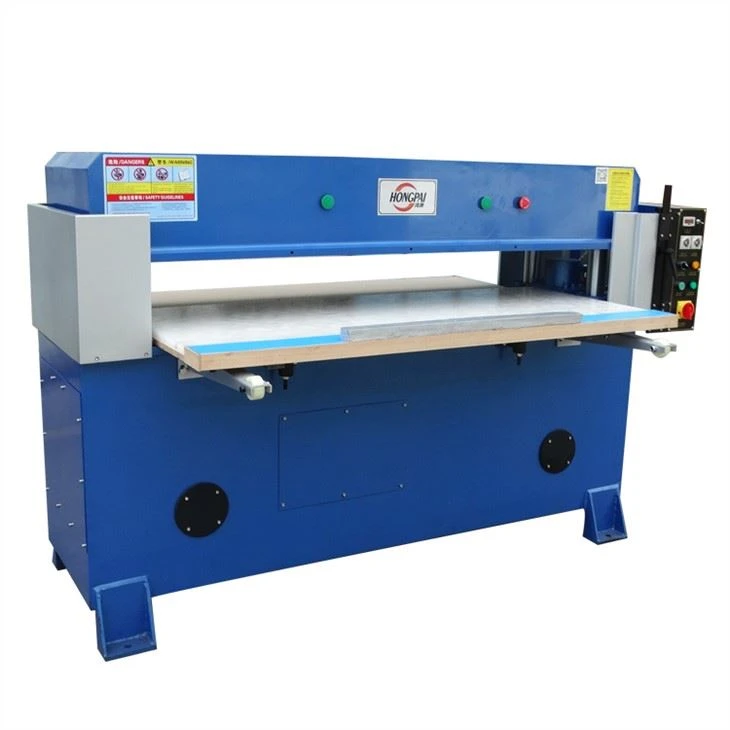

picture:
Application:
This manual cutting press is used for die-cutting foam, plastic, rubber, shoe material, facial mask, toy, cardboard, cleaning sponges, EVA/EPE, and so on.
Feature:
1. Auto-balance structure of double-cylinder, four-column, and self-balance connecting rod make sure equal pressure in any working area.
2. Stroke adjustment device makes stroke simple and correct to adjust with cutting die, cutting board, and materials.
3. Central automatic lubrication system, increases machine durability, prolongs the working time.
4. The manual cutting press is suitable for single-layer or multi-layer sheet or roll materials.
5. Slow down when the manual cutting press cutting die touches material, to confirm the precision between upper and bottom for thick materials.
working picture:
After-sale service
1. During the first year, all parts are for free, except the consumables and artificially damaged.
2. We will supply operation video for installation, we can also solve your problems through email, photos, and some communication software. we also can provide overseas services.
3. You are also welcome to our plant for training. We will responsible for the restaurant and meals, the training is free.
4. We are the cutting press manufacturers. Such as four-column plane cutting, gantry, and roller cutting. Please find more info on our website.
5. We welcome you to come to visit our plant, give us your suggestions, we will try our best to satisfy you.
