Product description

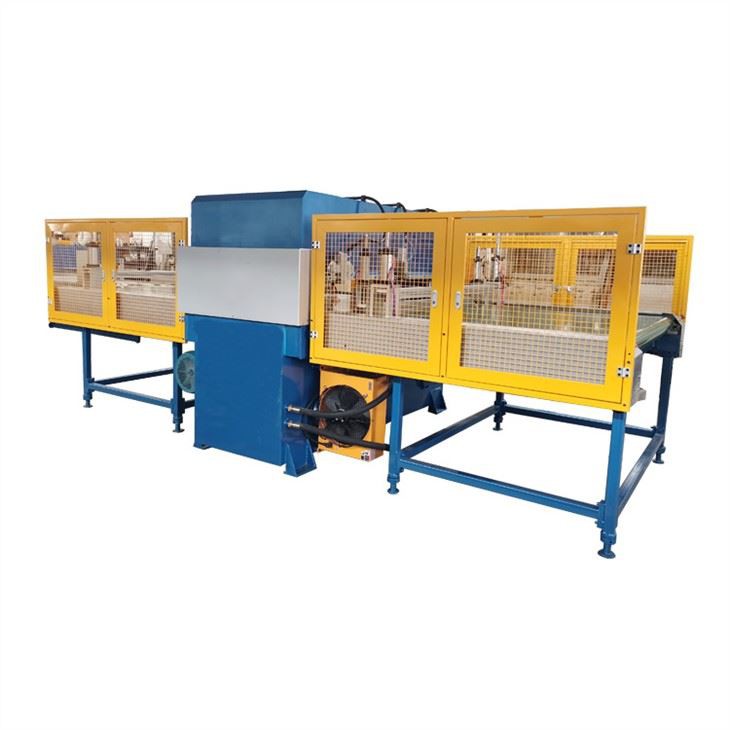

This Automatic Hydraulic Die Cutting Press is our company's best sale product this year. The feeding method of this machine is belt-type feeding. The raw material sheet is conveyed to the cutting zone material through the conveyor belt and then cut, fully automatic. It not only saves labor costs but also improves production efficiency.
Parameters:
| Model | HG-150T |
| Cutting force | 150 tons |
| Dimension | 2100*2200*1700mm |
| Cutting Area | 810*1400mm or customized |
| Motor | 11kw |
| Voltage | 220V/380V/415V or customized |
| Stroke | 50-230mm |
| Weight | 6000kg |
| Warranty period | 1 Year |
Remark: Cutting force can be from 50 tons to 300 tons; the cutting area can be 610/710/810/910*1400/1600/1800mm, etc.
Machine Detail
Automatic Hydraulic Die Cutting Press Feature:
1.Fully automatic roller feeding, movable discharge port, allowing all cutting processes without any need for Burberry.
2. Using PLC (programmable controller) control, the touch screen set fine-tunes the working pressure, cut deep, feed faster, faster, more accurate.
3. Double automatic die-cutting press worktables, double or triple output.
4. Double-cylinder, four-column, self-balanced linkage's auto-balancing structure ensures balanced pressure in any work area.
5. Pressurize with the hydraulic system, decelerate when the cutting dies contacts the material, confirm the accuracy of loading and unloading.
6. The Central automatic lubrication system increases machine durability and extends working time.
After-sale service
