This Leather Belt Hole Punching Machine is widely used to produce different types of belts, such as women's belts, men's belts, leather bracelets, twisted ropes, canvas belts, PU belts and dog collars.
Technical parameters
Model | HG-H7050-8 | HG-S7050-8 | HG-S7050-10 |
Pressure | 5-8kgf / cm2 | ||
Power | 1.8kw | ||
Punching number | 2 groups*4 | 2 groups*4 | 2 groups*5 |
Punching area | 500mm*700mm*2 | ||
The thickness of the leather | 0.6-8mm | ||
Punching range | 0.6-14mm | ||
Punching speed | 600-980 holes/ | 500-700 holes/ | 500-700 holes/ |
Weight | 1000kg | 1100kg | 1100kg |
Dimension | 1750mm*1850mm*1560mm | ||

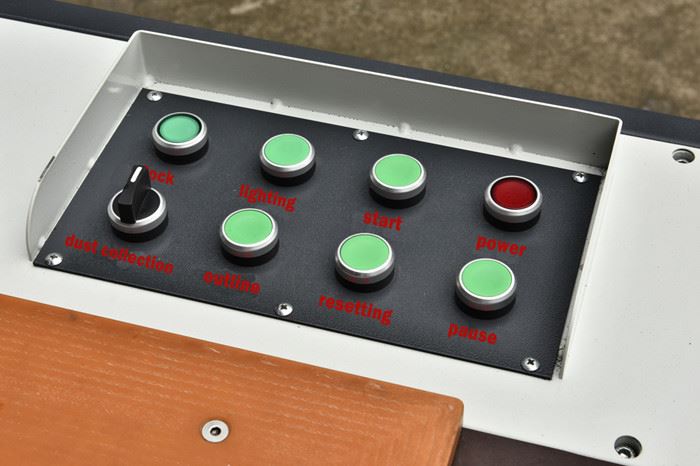

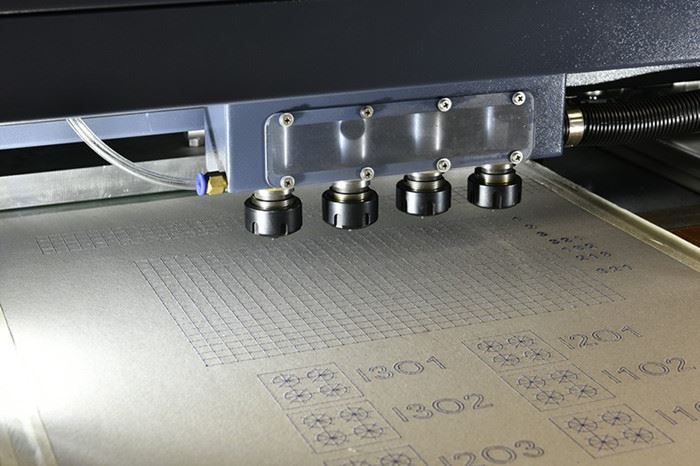

Picture：
Feature:
The belt buckle hole of this Leather Belt Hole Punching Machine only needs one punching and end beveling. It can also adjust the belt of different sizes. It is easy to operate, high punching precision, stable and reliable, and convenient to load and unload the die. It is very practical. The Leather Belt Hole Punching Machine's welded open construction allows the rugged body to remain rigid and has the most convenient operating space. The structure of the fuselage is compact, the operation is stable and fast, the output is efficient, the energy consumption is low, and the environment is energy-saving.
