1. Application:
About this die clicker press, it is widely used in shoemaking, cloth, luggage, car interiors, toy, Interior decoration, and other industries;
Small knife mold components, small toys, decorative pieces, leather bag accessories, candy, and other non-metal materials blanking ( such as leather, fabric, foam, EVA, rubber gasket, plastic, etc).
2. Parameter:
Model. No~ | Cutting Force | Dimension | Cutting Area | Motor Power | Stroke | Net Weight |
| HG-A30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/48" | 30 Tons | 1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
| HG-A40T/63" | 40 Tons | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
| HG-B40T/48" | 40 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
| HG-A50T/63" | 50 Tons | 2330*1320*1260mm | 610*1600mm | 4kw | 50-240mm | 2900kg |
| HG-B50T/48" | 50 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |
3. Feature:
1. This die clicker press is a double-cylinder and self-balance system, cutting plate is very precise, and auto slows down when cutting the materials.
2. The stroke is a special device, let the clicker press machine cut material simple and quickly.
3. Die clicker press is suitable for all kinds of nonmetal materials and is widely used.
4. Safe, two-hand operate the switch, easy operation.
5. Equipped with automatic oil supply and lubrication system, reduce wear and extend service life.
6. Die clicker press cutting travel is automatically controlled by the time meter, after the height of the die cutting.

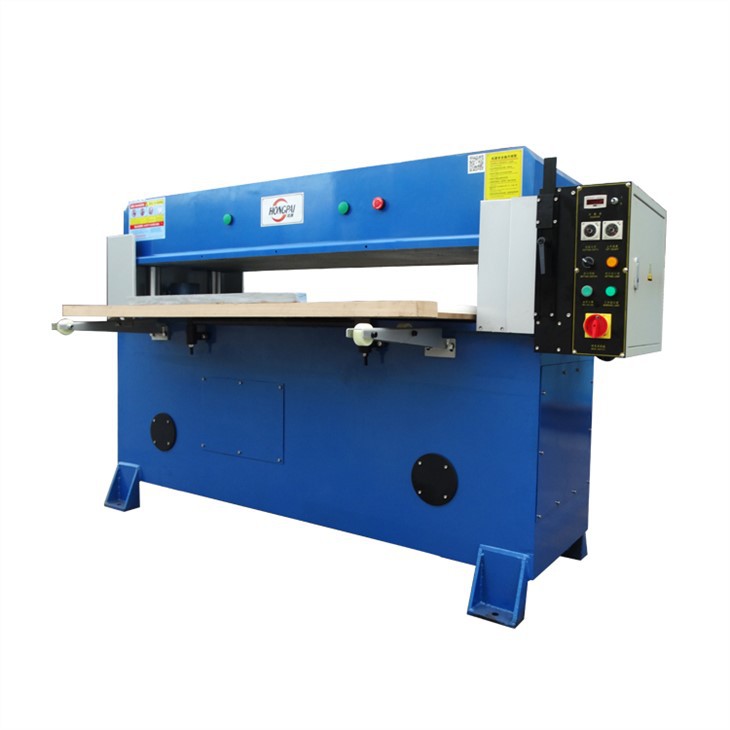

4. Die cutting press pictures:
