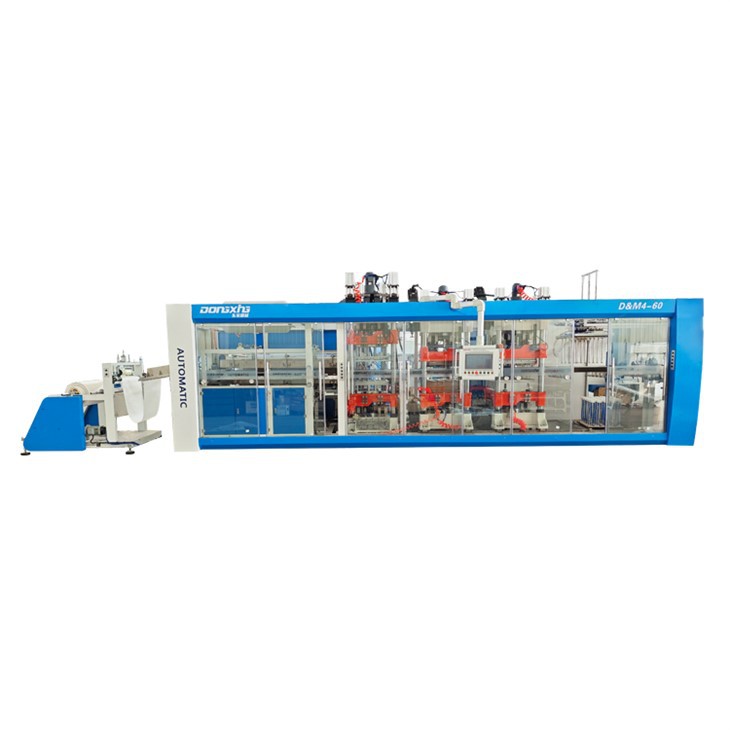

Four Stations Automatic Plastic Thermoforming Machine

Send Inquiry

Chat Now

D&M60 series Four stations automatic plastic thermoforming machine is a high-efficiency, fully automatic plastic sheet air pressure thermoforming machine developed by our company through digestion, absorption, and innovation of similar advanced models at home and abroad. The machine has the advantages of stable operation, convenient operation, and long life. The four stations automatic plastic thermoforming machine has four stations to process the material: heating, forming, cutting, punching, stacking, and recycling scrap.

Four stations automatic plastic thermoforming machine

Parameter

Model	DM-60
Name	Four Stations Automatic Plastic Thermoforming Machine
Applicable raw materials	PP, PS, PET, PVC, OPS, degradable materials, PLA, etc.
Forming method	vacuum and pressure forming
The maximum forming mold area	Width 780×length 600mm
The minimum molding die area	420×300mm
Applicable sheet thickness	0.15-2.0mm
Maximum punching area	780×600mm
Cutting knife line	8M knife line
Maximum opening and closing stroke of forming mold	150mm
Molded product height	130mm
Stacking mechanism	Hanging point stacking
Power access	380V/50HZ (three-phase five-wire)
Total Weight	13,000kg

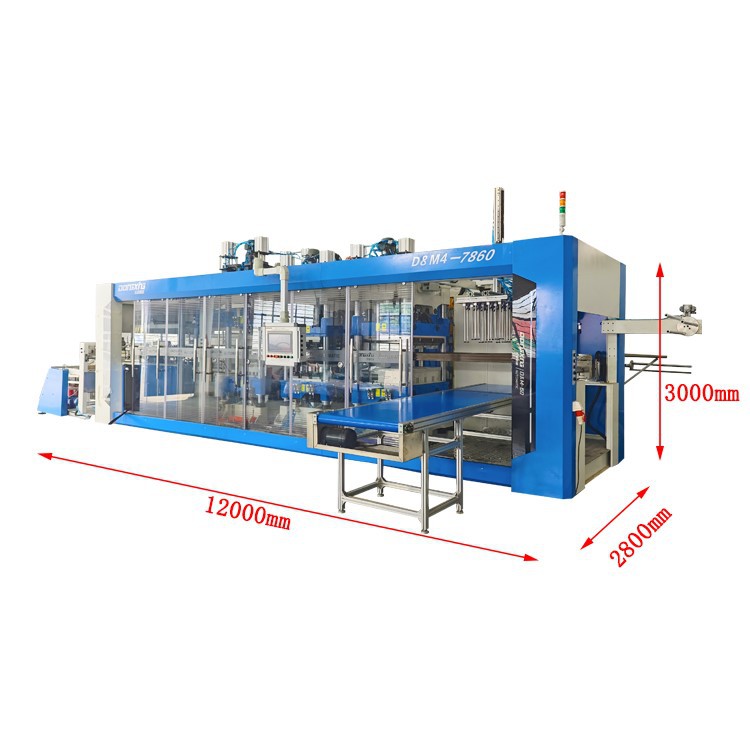

Dimension	L11.8m×W2.4m×H2.6m

Main configuration instructions

	Name	Brand
Control System	Control System	Beckhoff System
	Programmable Controller (PLC)	Beckhoff System
	Touch display	15-inch color touch monitor
Pull tab servo system	Pull tab servo system	Switzerland ABB
	Pull tab gearbox	High-precision planetary reducer
	Chain guide	Aerospace aluminum alloy surface hard oxygen treatment
	Pull tab chain	Taiwan KMC (double-row guide chain)
	Rail (beam) cooling system	The whole beam is cooled by water (circulating water)
	Rail adjustment	The guide rail is electrically adjusted and can be adjusted in one direction
Drive System	Cycles	40 times/minute
	Forming Servo System	Switzerland ABB
	Punching and cutting servo system	Switzerland ABB
	Stack Servo System	Switzerland ABB
	Station structure	Cam structure

For more configuration instructions contact us please!

Feature

1. The D&M60 series Four station automatic plastic thermoforming machine is a new model that has been continuously optimized and designed according to the new requirements of plastic product processing.

2. It has a wide range of uses, stable motion, low noise, reliable work, high finished product qualification rate, wide application of sheet materials, forming, trimming, finished product output, and waste rewinding are all fully automated and continuous production.

3. Four station automatic plastic thermoforming machines can greatly save manpower and space, reduce costs, and improve economic benefits.

Photos detail

Four stations automatic plastic thermoforming machine frame
