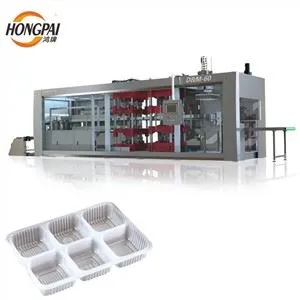

Three Stations Fully Automatic Hydraulic Plastic Cup Lid Food Boxes Forming Machine
Three Stations Fully Automatic Hydraulic Plastic Cup Lid Food Boxes Forming Machine

Three Stations Fully Automatic Hydraulic Plastic Cup Lid Food Boxes Forming Machine

HG-DM60 Three Stations Fully Automatic Hydraulic Plastic Cup Lid Food Boxes Forming Machine is suitable for the molding of HIPS, PS, PP, PVC, PET, etc. plastic sheets, processing high transparency, high stretch, shallow stretch, round, square, irregular, up and down bidirectional stretching, flanging and other products,
Send Inquiry
Chat Now

Product Description

Three Stations Fully Automatic Hydraulic Plastic Cup Lid Food Boxes Forming Machine is suitable for the molding of HIPS, PS, PP, PVC, PET, etc. plastic sheets, processing high transparency, high stretch, shallow stretch, round, square, irregular, up and down bidirectional stretching, flanging and other products, producing various boxes, dishes, trays, bowls, covers, industrial packaging, food packaging, cosmetics packaging, and other packaging and other plastic products.

Parameter

Model HG-DM60
Machine Type Food Boxes Forming Machine
Applicable raw materials

PP, PS, PET, PVC, OPS, degradable materials, PLA, etc.
Forming method Positive and negative pressure forming
The maximum forming mold area Width 780×Length 600mm
Minimum molding die area 420×300mm
Air pressure 7 Bar
Travel depth 150 mm
Formed depth 130 mm
Maximum sheet width 450-810mm
Applicable sheet thickness 0.15-2.0mm
Stacking mechanism Hanging point stacking
Rated power of the whole machine 120 KW
Heating power 25-55kw

Weight

14 T
Dimension 12m*2.8m*2.6m
Power access 380V/50HZ (three-phase five-wire)

Plastic Cup Lid Forming Machine Detail

Feature

1. The Automatic Plastic Cup Lid Forming Machine consists of the main structure frame, positive and negative pressure forming system, temperature control system, vacuum system, heating system, air control system, electrical and PLC control system, cutting system, product decomposition, and stacking and edge material automatic winding system And other structural composition.

2. The overall steel structure frame is guided by the, and all the parts involved are fully in line with a high-quality selection of materials, blank production methods, machining, heat treatment, parts assembly, machine operation, machine maintenance, and other technological foundations, To ensure that the movable device that transmits and transforms motion and force has sufficient strength and rigidity.

3. Feeding and heating part has an optoelectronic switch in order to prevent errors operating from the production process.

Application

Certification
