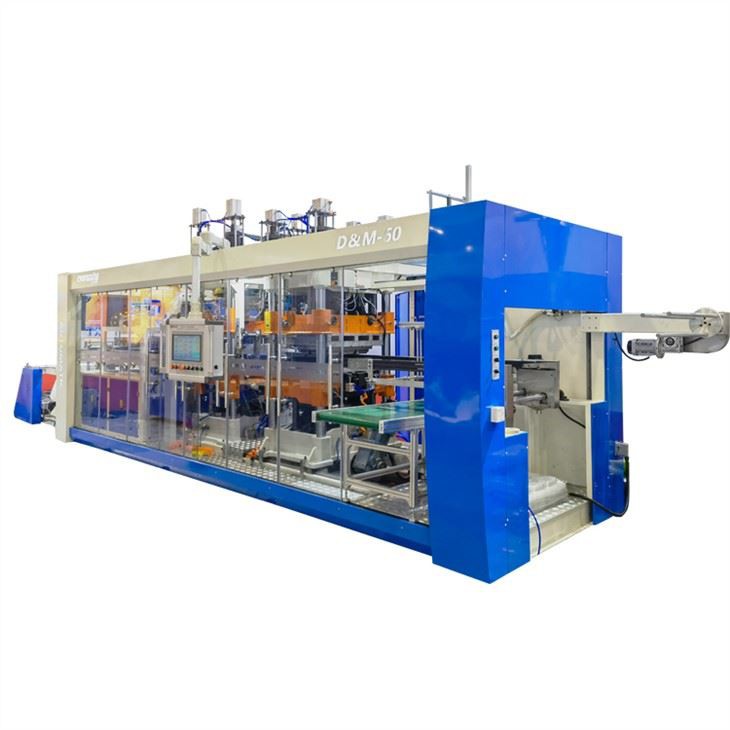

Three Stations Auto Pp Pet Plastic Food Tray Container Thermoforming Machine
Three Stations Auto Pp Pet Plastic Food Tray Container Thermoforming Machine

Three Stations Auto Pp Pet Plastic Food Tray Container Thermoforming Machine

The DM60 three stations auto pp pet plastic food tray container thermoforming is a high-efficiency and fully automatic plastic sheet pneumatic thermoforming machine that is developed by digesting, absorbing, and innovating similar advanced models at home and abroad...
Send Inquiry
Chat Now

Product Description

The DM60 three stations auto pp pet plastic food tray container thermoforming Machine is a high-efficiency and fully automatic plastic sheet pneumatic thermoforming machine that is developed by digesting, absorbing, and innovating similar advanced models at home and abroad.

Parameter

Model HG-DM60
Machine Type Plastic Food Container Vacuum Forming Machinery
Applicable raw materials

PP, PS, PET, PVC, OPS, degradable materials, PLA, etc.
Forming method Positive and negative pressure forming
The maximum forming mold area Width 780×Length 600mm
Minimum molding die area 420×300mm
Air pressure 7 Bar
Travel depth 150 mm
Formed depth 130 mm
Maximum sheet width 450-810mm
Applicable sheet thickness 0.15-2.0mm
Stacking mechanism Hanging point stacking
Rated power of the whole machine 120 KW
Heating power 25-55kw

Weight

14 T
Dimension 12m*2.8m*2.6m
Power access 380V/50HZ (three-phase five-wire)

Food Container Thermoforming Machine Detail

Feature

1. The station structure is changed to a servo direct-punching structure, which improves efficiency. The old-style cutting needs to be clamped and pressurized before cutting. The new style is servo direct cutting.

2. The new station connecting rods are all doubled.

3. The temperature control system is upgraded, each heater of the new intelligent temperature control system can be individually controlled, the temperature control module imported from Japan, the temperature accuracy is 0.5°

About Us

this is forming+cutting parts made in Honggang factory then deliver to our another two thermoforming machine factories （in Dongguan city）
Our advantages:
1. The original Food Tray Thermoforming Machine manufacturer
2. Honggang specializes in forming+ cutting parts for 29 years
3. Honggang provides forming+cutting parts for their 3 stations machine for other vacuum forming manufacturers
