Product Description

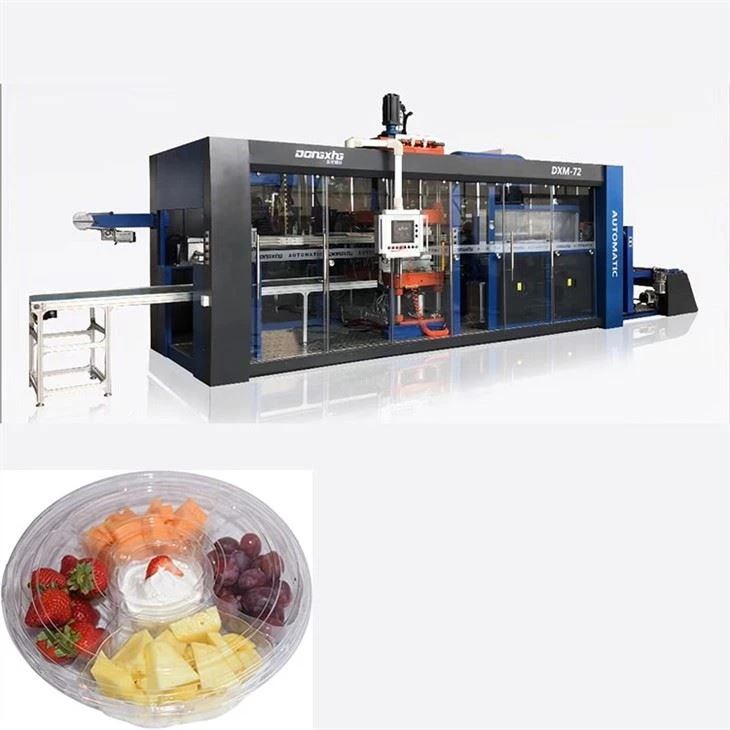

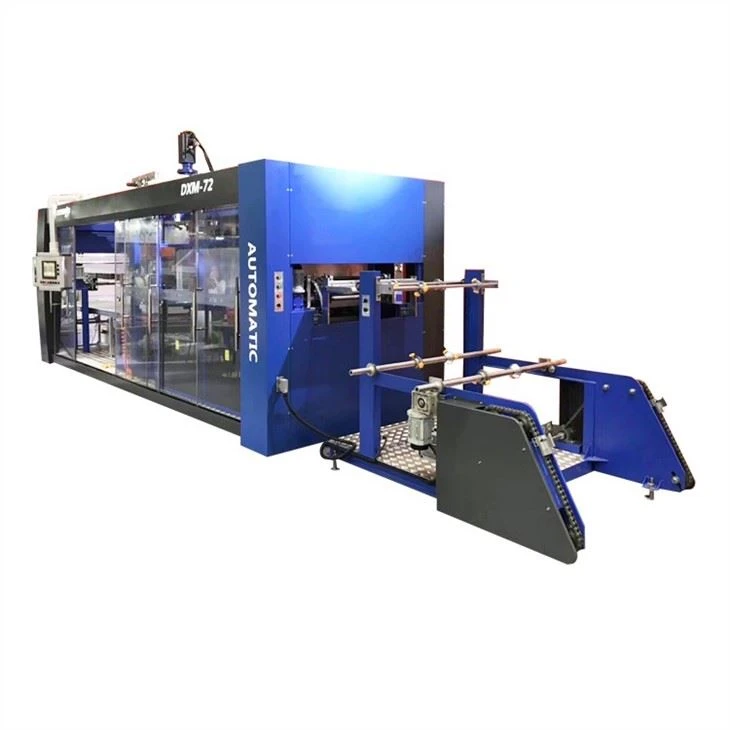

DXM-72 Three Stations Automatic Plastic Pvc Fruit Tray Vacuum Thermoforming Machine It is used for the second forming of PET, PS, PP. PC, PVC. HIPS, Flocking sheet, and so on. The leading design effectively solves the problems such as air leakage during forming, deviation of the zipper pulls, thickness asymmetry of the products. So Fruit Tray Vacuum Thermoforming Machine can reduce the rejection rate of some complex products.
Parameter
| Model | DXM-72 |
| Machine Type | Pvc Fruit Tray Vacuum Thermoforming Machine |
| Applicable raw materials |
PP, PS, PET, PVC, OPS, degradable materials, PLA, etc. |
| Forming method | Positive and negative pressure forming |
| The maximum forming mold area | Width 720×Length 720mm |
| Minimum molding die area | 420×300mm |
| Air pressure | 7 Bar |
| Travel depth | 150 mm |
| Formed depth | 130 mm |
| Maximum sheet width | 450-810mm |
| Applicable sheet thickness | 0.15-2.0mm |
| Stacking mechanism | Hanging point stacking |
| Rated power of the whole machine | 100 KW |
| Heating power | 25-55kw |
|
Weight |
10 T |

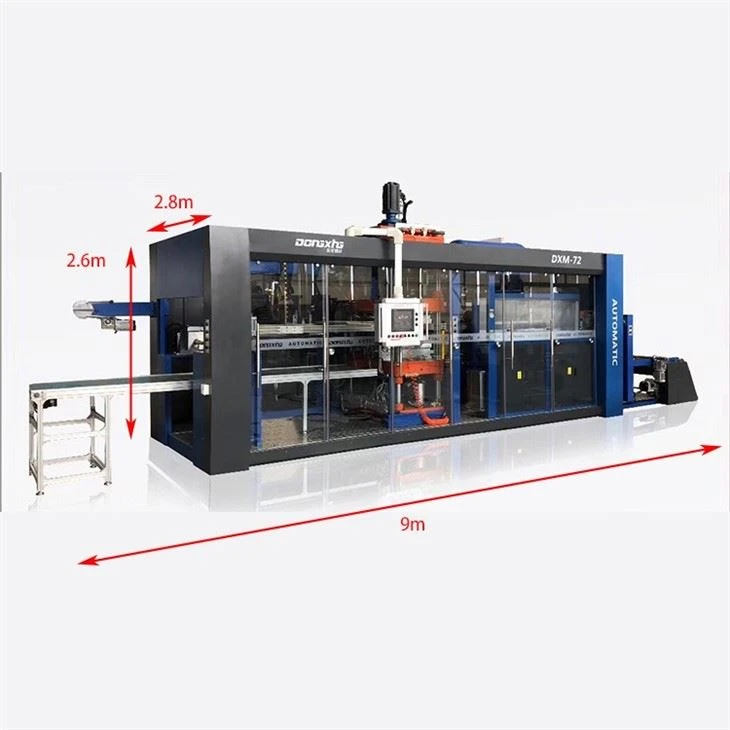

| Dimension | 9m*2.8m*2.6m |
| Power access | 380V/50HZ (three-phase five-wire) |

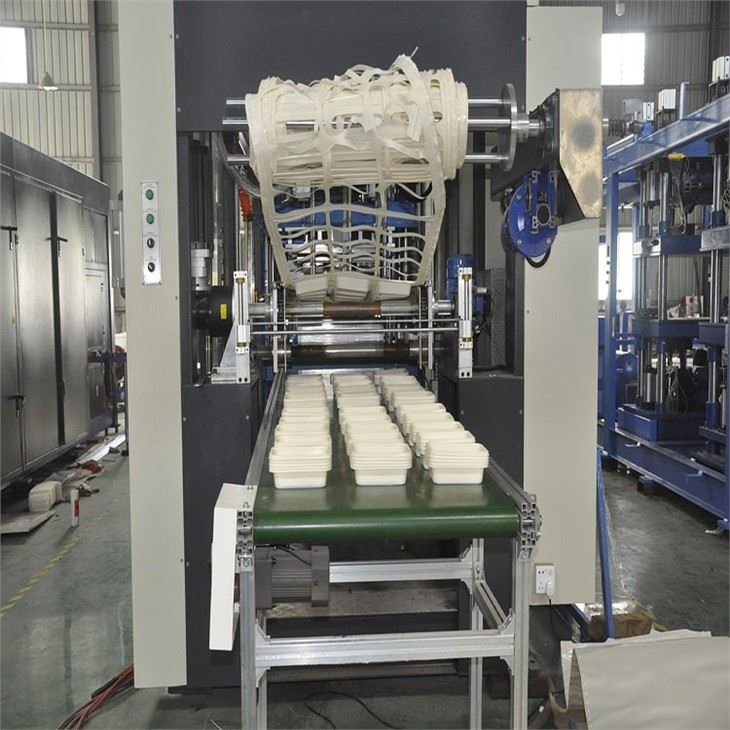

Plastic Fruit Tray Vacuum Thermoforming Machine Detail
Feature
1. knife mold, mold temperature control function.
2. automatic punching and cutting function, automatic counting function.
3. Stacking after cutting.
4.edge automatic rolling function.
5. safety protection device.

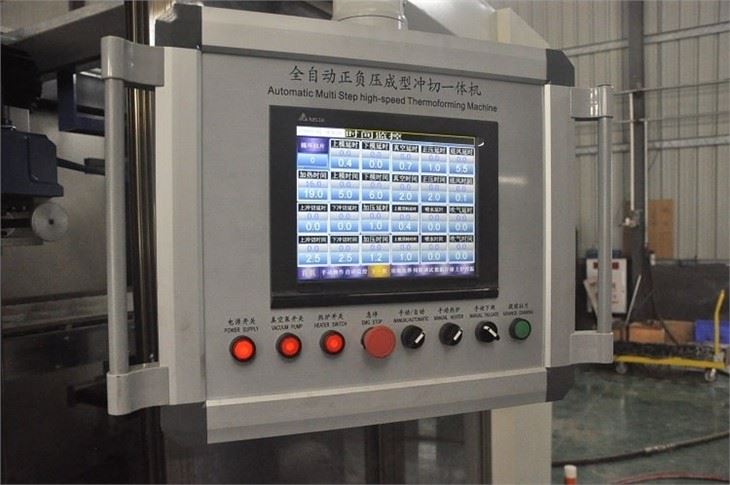

6. touch screen computer temperature control module of function.
Application
