Three Stations Fully Automatic Plastic Pvc Fruit Box Vacuum Forming Machine

The main body of the Three Stations Fully Automatic Plastic Pvc Fruit Box Vacuum Forming Machine: It is formed by splicing and welding steel structure profiles such as square pass and channel steel, which is used for assembling heating, mold table forming, mold table...

Send Inquiry

Chat Now

Product Description

The main body of the Three Stations Fully Automatic Plastic Pvc Fruit Box Vacuum Forming Machine: Fruit Box Vacuum Forming Machine is formed by splicing and welding steel structure profiles such as square pass and channel steel, which is used for assembling heating, mold table forming, mold table punching, and auxiliary devices. The overall steel structure frame is guided by the, and all the parts involved are fully in line with: high-quality selection of materials, blank production methods, machining, heat treatment, parts assembly, machine operation, machine maintenance, and other technological foundations, To ensure that the movable device that transmits and transforms motion and force has sufficient strength and rigidity. All metal surfaces are treated with anti-rust and the bottom layer is sprayed with anti-rust paint; common parts and standard parts are used in the structure, which is convenient for later maintenance and replacement of all parts.

Parameter

Model	HG-DX7152
Machine name	Pvc Fruit Box Vacuum Forming Machine
Applicable raw materials	PP, PS, PET, PVC, OPS, degradable materials, PLA, etc.
Forming method	Positive and negative pressure forming
The maximum forming mold area	Width 710×Length 850mm
Minimum molding die area	420×300mm
Maximum sheet width	750mm
Applicable sheet thickness	0.15-2.0mm
Maximum punching area	710×520mm
Cutting line	6m knife line
Maximum opening and closing stroke of forming mold	120mm
Molded product height	80mm
Mold height	150mm
Stacking mechanism	Hanging point stacking
Rated power of the whole machine	80kw
Power consumption	25-50kw
Power access	380V/50HZ (three-phase five-wire)

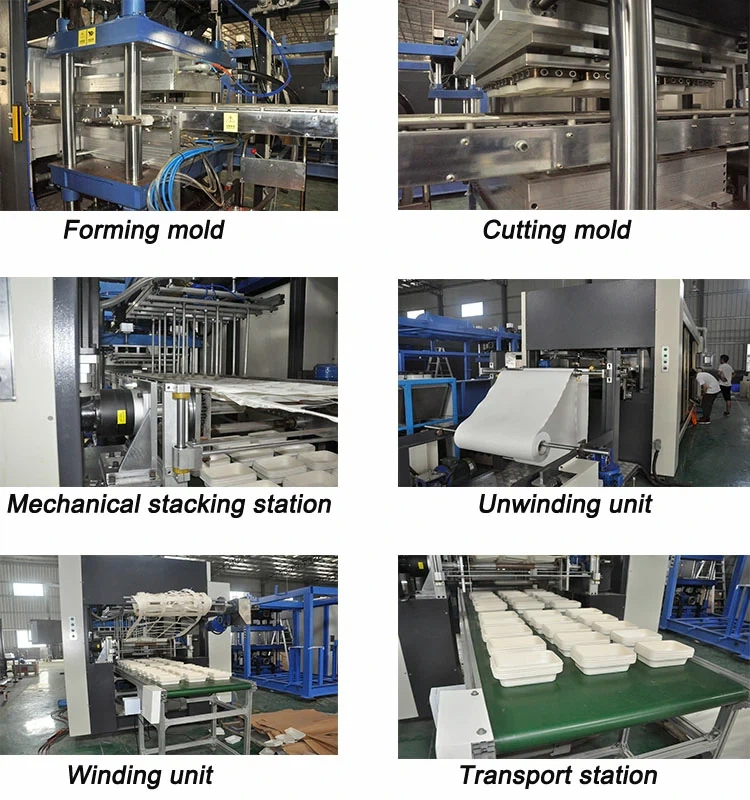

Plastic Fruit Box Vacuum Forming Machine Detail

Feature

1. Automatic Plastic Fruit Box Vacuum Forming Machine uses a microcomputer touch screen man-machine interface control system, the operation is intuitive and easy to operate, convenient, and easy maintenance.

2. High speed, low noise, durable, and easy to maintain; 3s/time.

3. Introduce an absolute-servo control system, coupled with an advanced automation system for process any PP PS marking, OPS marking, PE, PVC, APET and CPET, DW3, THE, the high-speed injection molding machines are impeccable.

4. The mold replacement bodies with new design ensure extremely shorter mold the changing times, simple mold replacement system designed in accordance with established human efficiency optimization, as well as steel cutting and stacking devices to ensuring maximum production time.

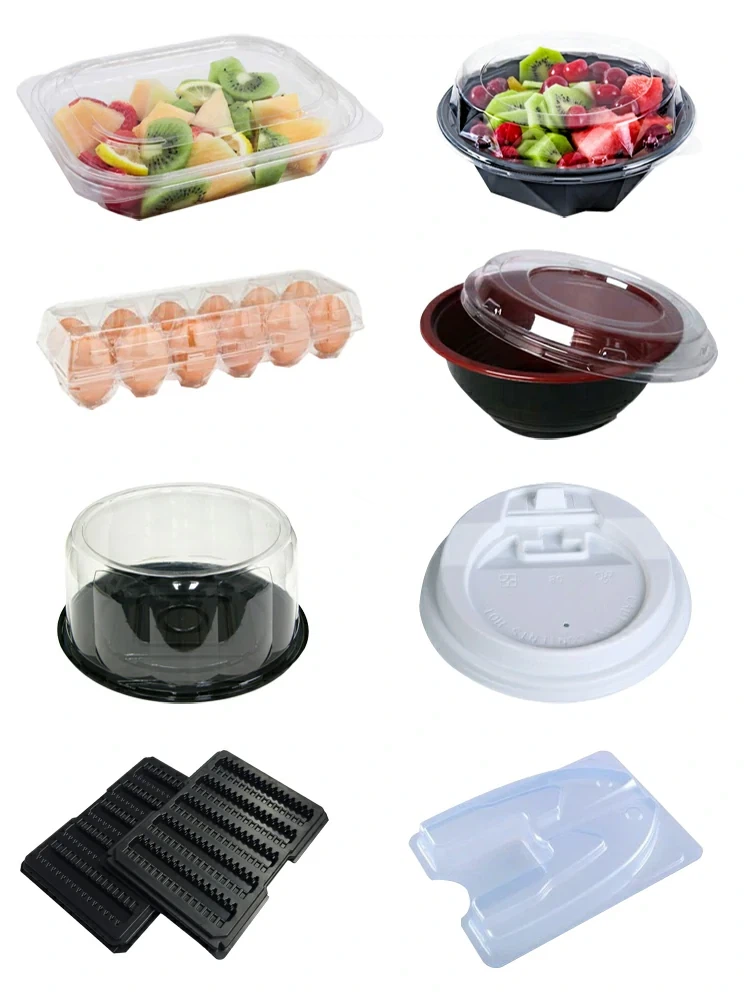

Application
